Machine Specifications
KEY FEATURES
• Industrial clamshell enclosure with full top-opening access
• Large turntable for rotation of parts during wash cycle
• Closed-loop aqueous cleaning system with filtration
• Oscillating wash manifold for uniform spray coverage

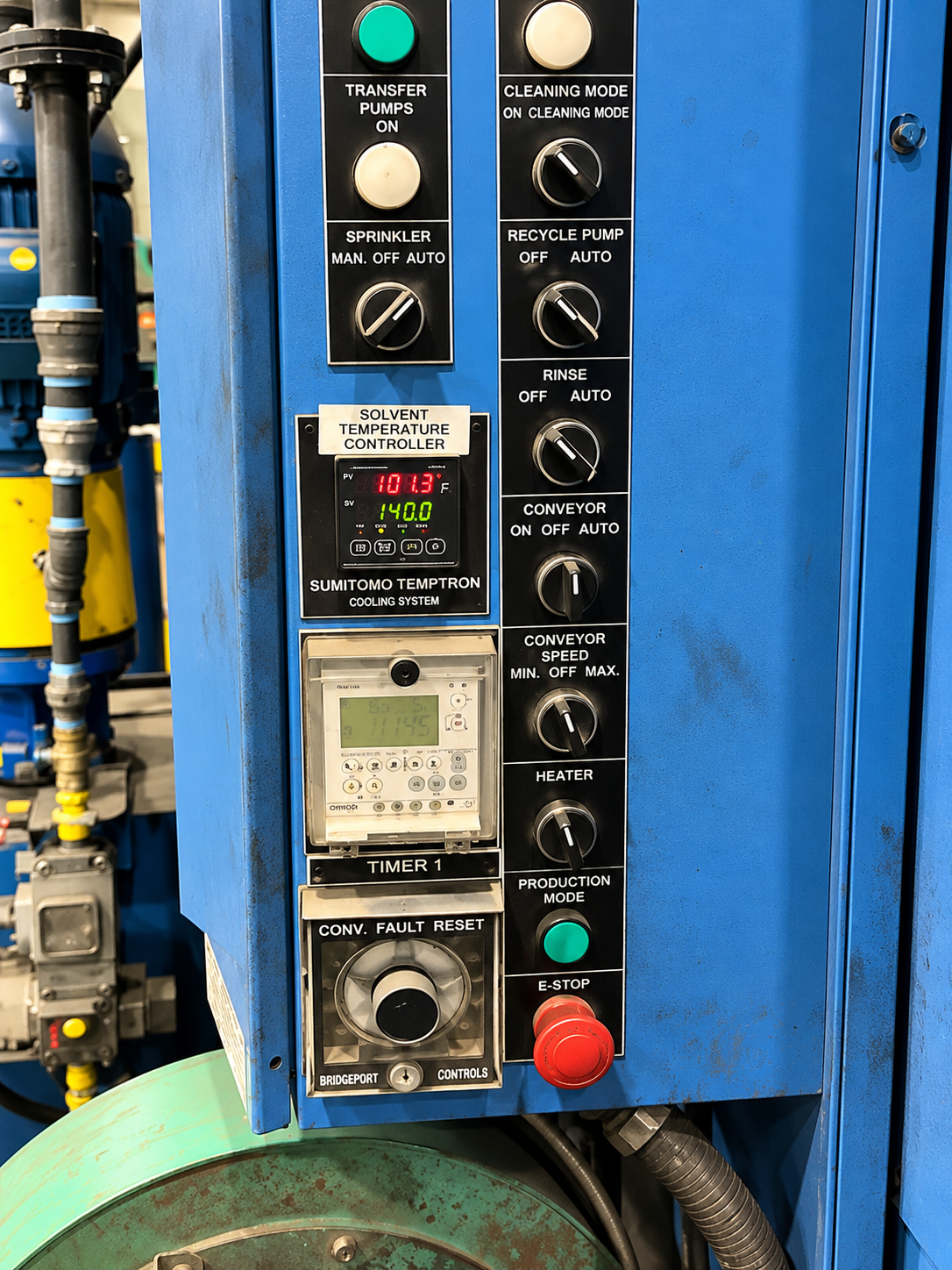

• Safety interlocks and level control systems included
• Programmable cycle timer for repeatable results
WORK AREA
Turntable Diameter: 84 in (2134 mm)
Work Height: 112 in (2845 mm)
Overall Dimensions: ~139 in W × 132 in D × 173 in H
CAPACITY
Standard Load Rating: 15,000 lbs (6,800 kg)
Optional Heavy-Duty Rating: 30,000 lbs (13,600 kg)
Machine Weight (Approx): 26,500 lbs (12,020 kg)
WASH SYSTEM SPECIFICATIONS
Wash Medium: Aqueous cleaning solution
Spray System: High-coverage oscillating spray manifold
Nozzles: Multiple strategically placed high-impact nozzles

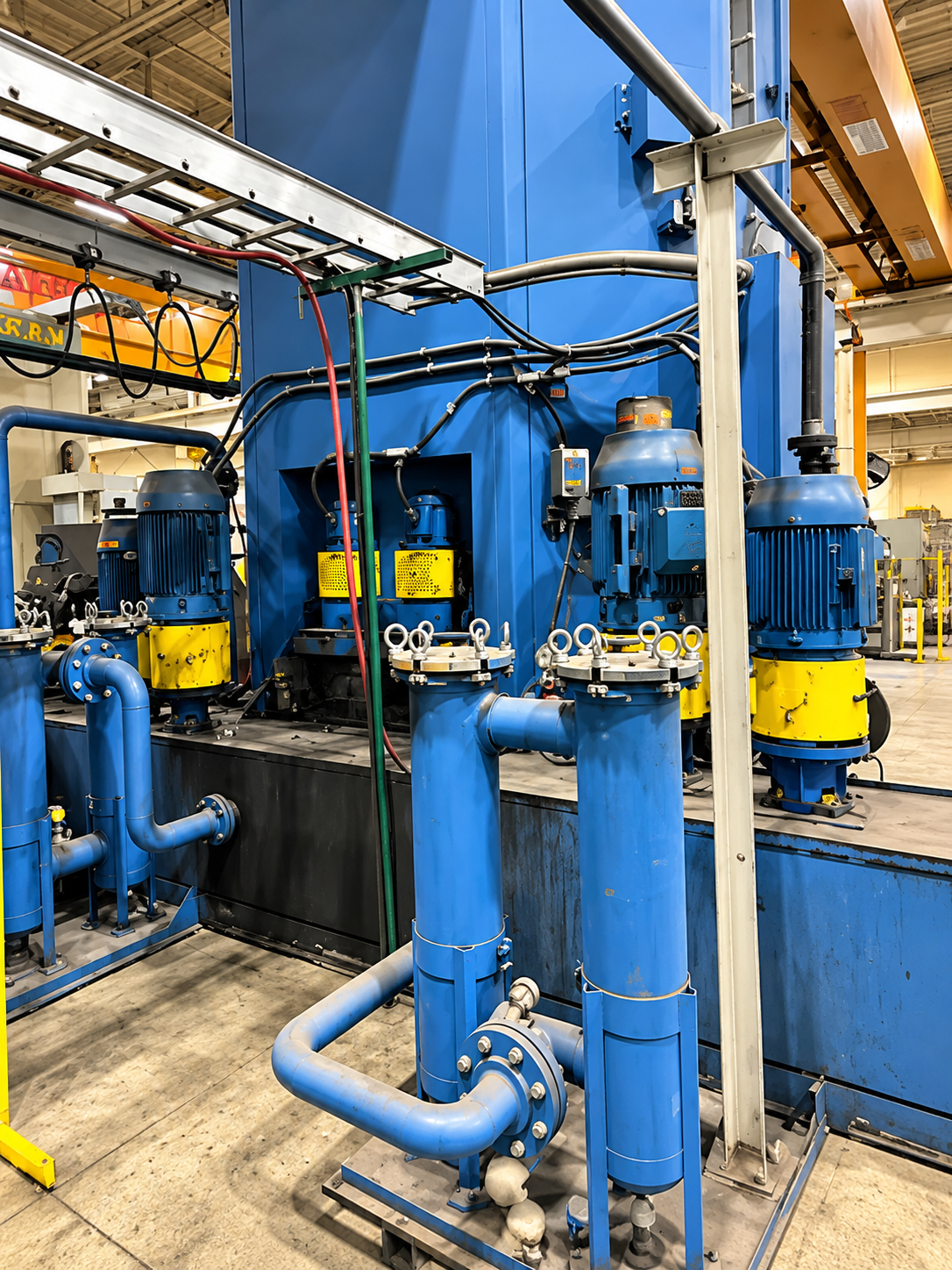

PUMP & MOTOR
Standard Pump: 70 HP industrial duty
Flow / Pressure: ~500+ GPM @ ~150+ PSI (dependent on configuration)
Optional Pump Upgrade: 140 HP (for enhanced power and throughput)
TEMPERATURE
Standard operating temperature range: up to 140–190°F (60–88°C)
Heated wash designed for heavy grease, oil, and carbon removal.
STANDARD INCLUSIONS
Filtration and recirculation system
Turntable rotation control
Programmable wash timer
Counterbalanced clamshell lid
Emergency stop and safety shutdown circuits
