OKK MCV-860 CNC VERTICAL MACHINING CENTER

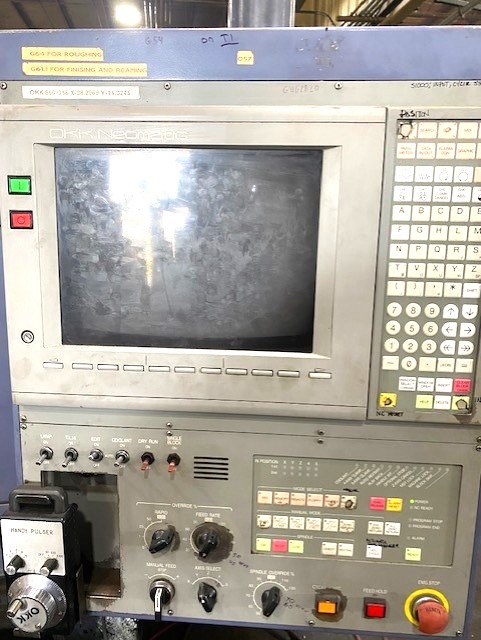

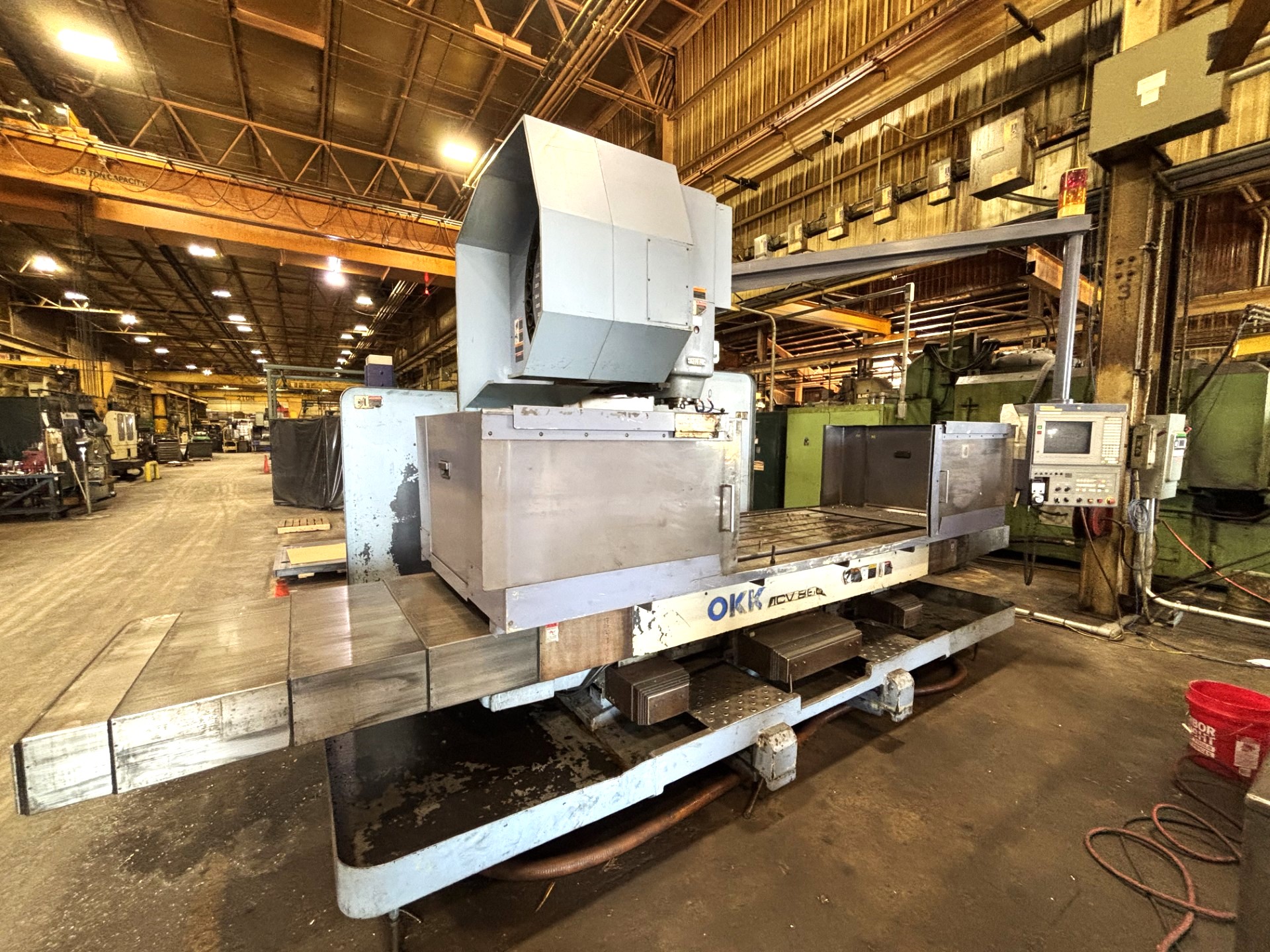

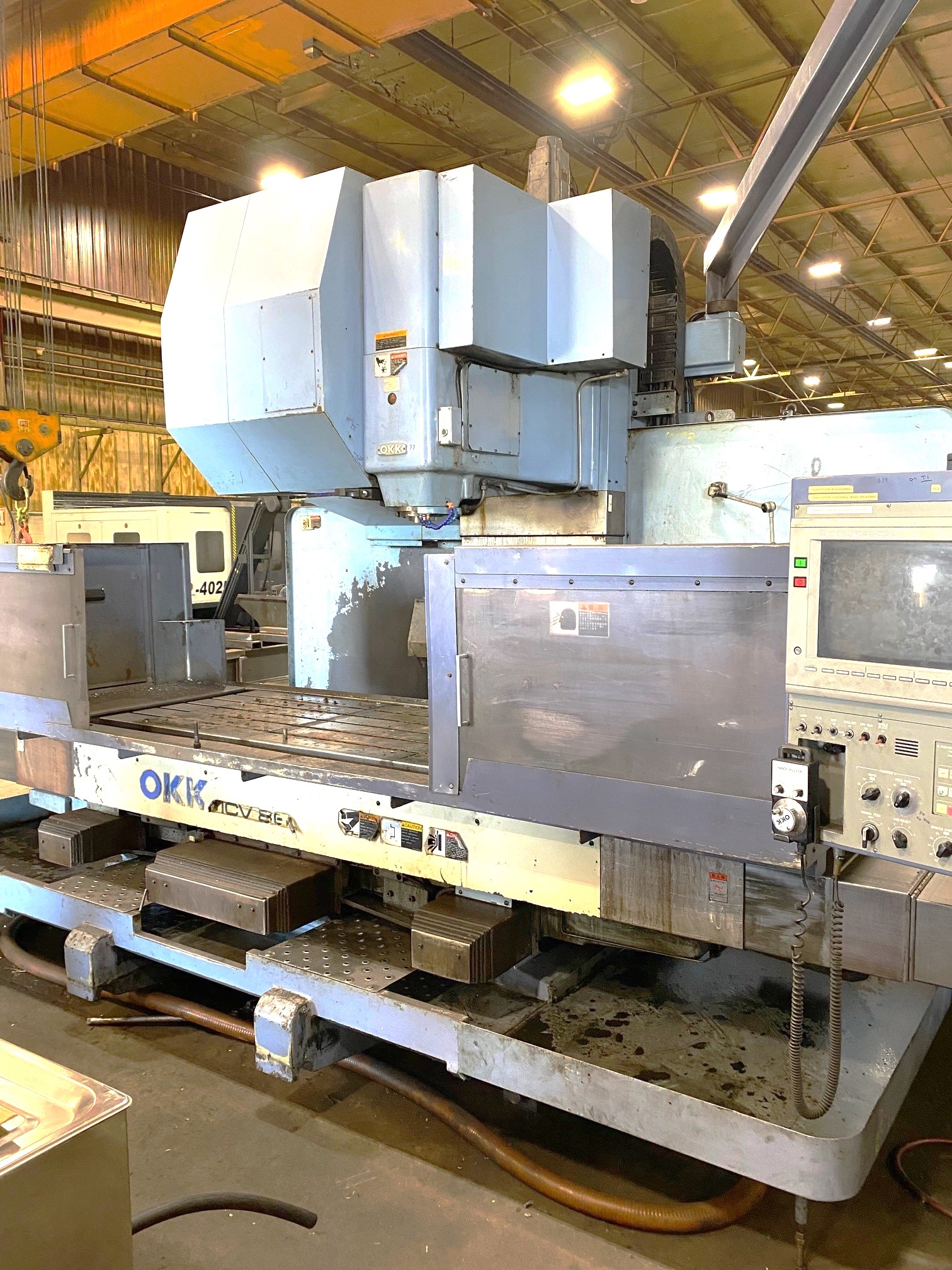

OKK MCV-860 CNC VERTICAL MACHINING CENTER Manufacturer: OKK Corporation Model: MCV-860 Machine Serial Number: To Be Confirmed Manufacturing Number: To Be Confirmed Country of Manufacture: Japan Machine Type: CNC Vertical Machining Center Control: OKK Neomatic CNC Control Number of Axes: 3 Condition: To Be Confirmed Year: To Be Confirmed GENERAL DESCRIPTION Heavy-duty OKK MCV-860 CNC Vertical Machining Center featuring an OKK Neomatic CNC control, large 90.5" x 33.5" worktable, approximately 80" of X-axis travel and a CAT 50 geared-head spindle. The MCV-860 was designed for machining large, heavy workpieces and demanding material-removal applications. Its rigid construction, substantial table capacity and wide working envelope make it suitable for general machining, mold and die work, aerospace components, large fabricated parts and other heavy-duty milling applications. SPECIFICATIONS TABLE Table Size: Approximately 90.5" x 33.5" Maximum Table Load: Approximately 6,614 lbs. Number of T-Slots: 5 T-Slot Width: Approximately 0.87" TRAVELS X-Axis Travel: Approximately 80.3" Y-Axis Travel: Approximately 33.9" Z-Axis Travel: Approximately 28.4" SPINDLE Maximum Spindle Speed: 6,000 RPM Spindle Taper: CAT 50 Spindle Motor: Approximately 35/30 HP Spindle Speed Ranges: Two-Speed Geared Head Spindle Nose to Table Surface: Approximately 7.9" minimum to 36.2" maximum FEED RATES Rapid Traverse, X and Y Axes: Approximately 590 IPM Rapid Traverse, Z Axis: Approximately 472 IPM Maximum Cutting Feed Rate: Approximately 394 IPM AUTOMATIC TOOL CHANGER Tool-Changer Capacity: Approximately 30 Positions - Subject to Verification Maximum Tool Diameter: To Be Confirmed Maximum Tool Length: Approximately 13.8" Maximum Tool Weight: Approximately 44 lbs. Tool-to-Tool Change Time: Approximately 2.5 Seconds EQUIPPED WITH OKK Neomatic CNC control CAT 50 geared-head spindle 6,000 RPM maximum spindle speed Automatic tool changer Large-capacity worktable Heavy-duty box-way construction Manual pulse generator Machine guarding Coolant system Work light APPROXIMATE MACHINE WEIGHT Approximately 37,500 lbs. - Subject to Verification MACHINE DIMENSIONS Approximately 17.2' L x 15.9' W x 11.8' H - Subject to Verification ADDITIONAL INFORMATION The machine is currently installed on a plant floor. Operating condition, available tooling, manuals, maintenance records and accessories are subject to confirmation.
