OKK MCV-660 CNC VERTICAL MACHINING CENTER

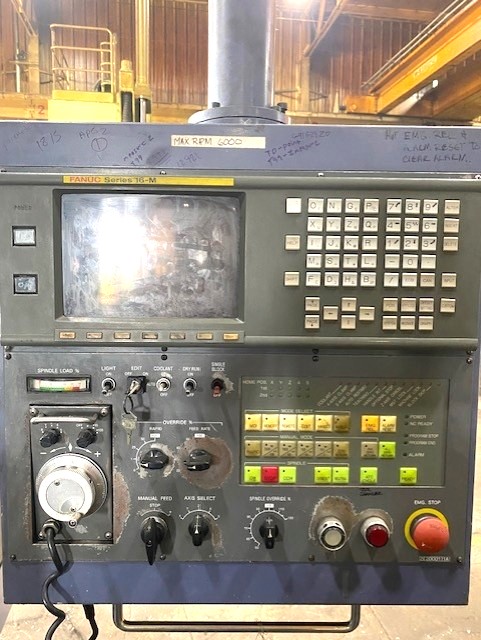

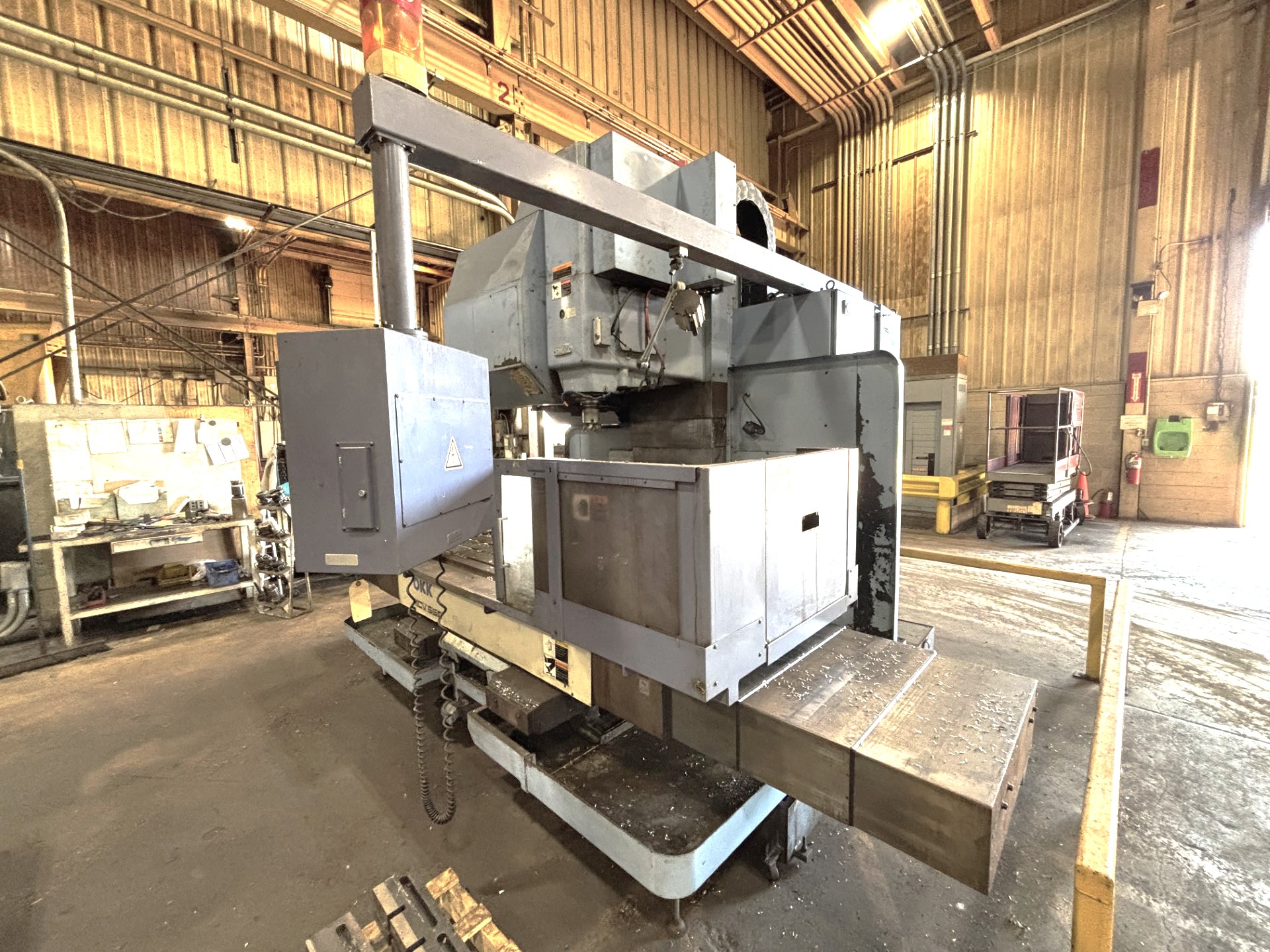

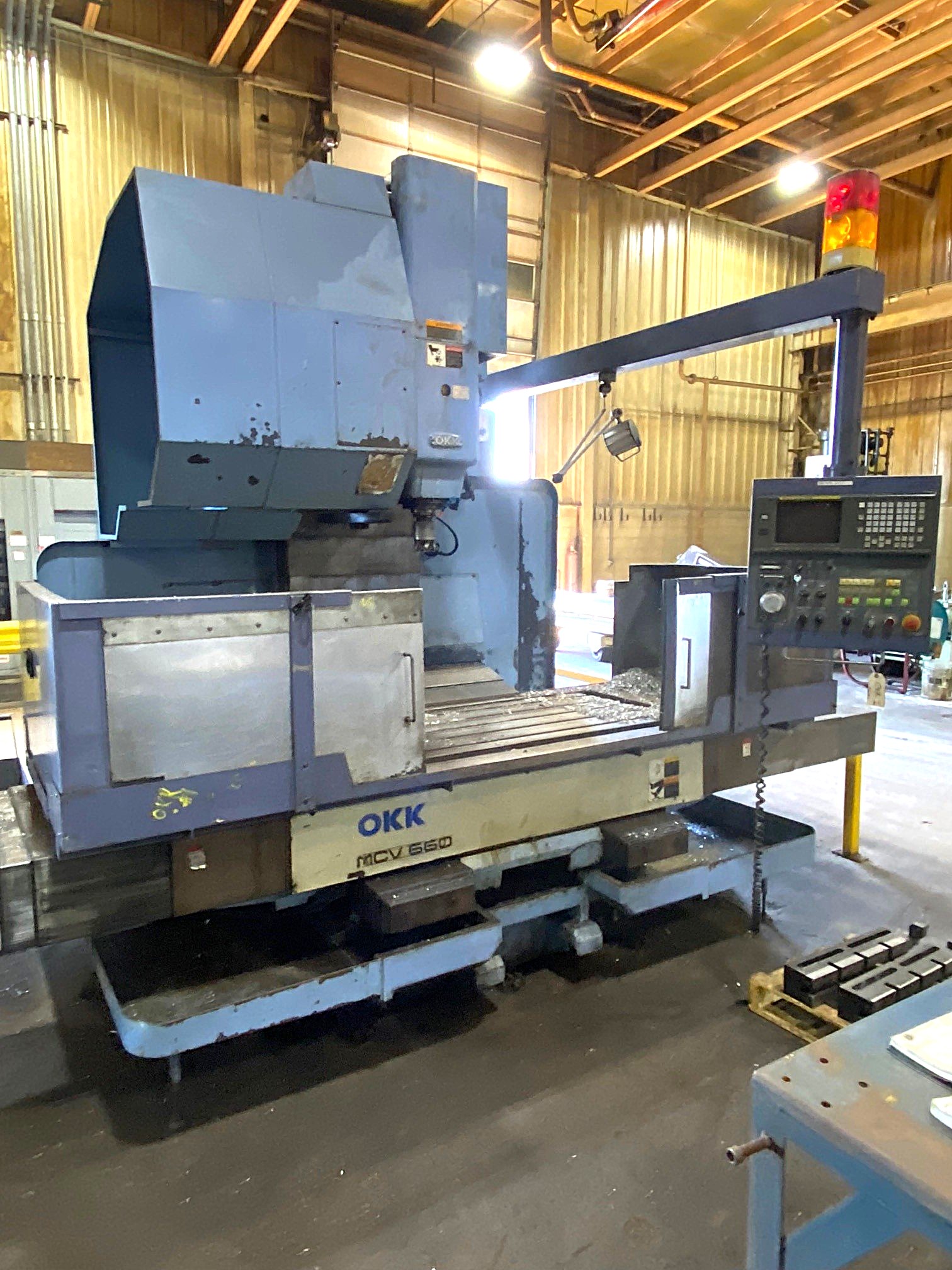

OKK MCV-660 CNC VERTICAL MACHINING CENTER Manufacturer: OKK Corporation Model: MCV-660 Machine Serial Number: 915 Manufacturing Number: MA66062 Country of Manufacture: Japan Machine Type: CNC Vertical Machining Center Control: GE Fanuc Series 16-M Number of Axes: 3 Condition: To Be Confirmed Year: To Be Confirmed GENERAL DESCRIPTION Heavy-duty OKK MCV-660 CNC Vertical Machining Center featuring a GE Fanuc Series 16-M CNC control, large 67" x 25.5" worktable, approximately 60" of X-axis travel and a CAT 50 spindle. The MCV-660 was designed for large-workpiece machining and heavy material removal. Its rigid construction, substantial table capacity and wide working envelope make it suitable for general machining, mold and die work, aerospace components, fabrication support and other demanding milling applications. SPECIFICATIONS TABLE Table Size: Approximately 67" x 25.5" Maximum Table Load: Approximately 4,409 lbs. TRAVELS X-Axis Travel: Approximately 59.8" Y-Axis Travel: Approximately 26" Z-Axis Travel: Approximately 25.5" SPINDLE Maximum Spindle Speed: 6,000 RPM Spindle Taper: CAT 50 Spindle Motor: Approximately 25 HP Spindle Nose to Table Surface: Approximately 7.9" minimum to 33.5" maximum FEED RATES Rapid Traverse, X and Y Axes: Approximately 787 IPM Rapid Traverse, Z Axis: Approximately 630 IPM Maximum Cutting Feed Rate: Approximately 394 IPM AUTOMATIC TOOL CHANGER Tool-Changer Capacity: To Be Confirmed Maximum Tool Diameter: To Be Confirmed Maximum Tool Length: To Be Confirmed Maximum Tool Weight: To Be Confirmed EQUIPPED WITH GE Fanuc Series 16-M CNC control CAT 50 spindle 6,000 RPM maximum spindle speed Automatic tool changer Large-capacity worktable Heavy-duty box-way construction Manual pulse generator Machine guarding Coolant system Work light APPROXIMATE MACHINE WEIGHT Approximately 26,500 lbs. - Subject to Verification MACHINE DIMENSIONS To Be Confirmed ADDITIONAL INFORMATION The machine is currently installed on a plant floor. Operating condition, available tooling, manuals, maintenance records and accessories are subject to confirmation.
