CA Inventory #3880

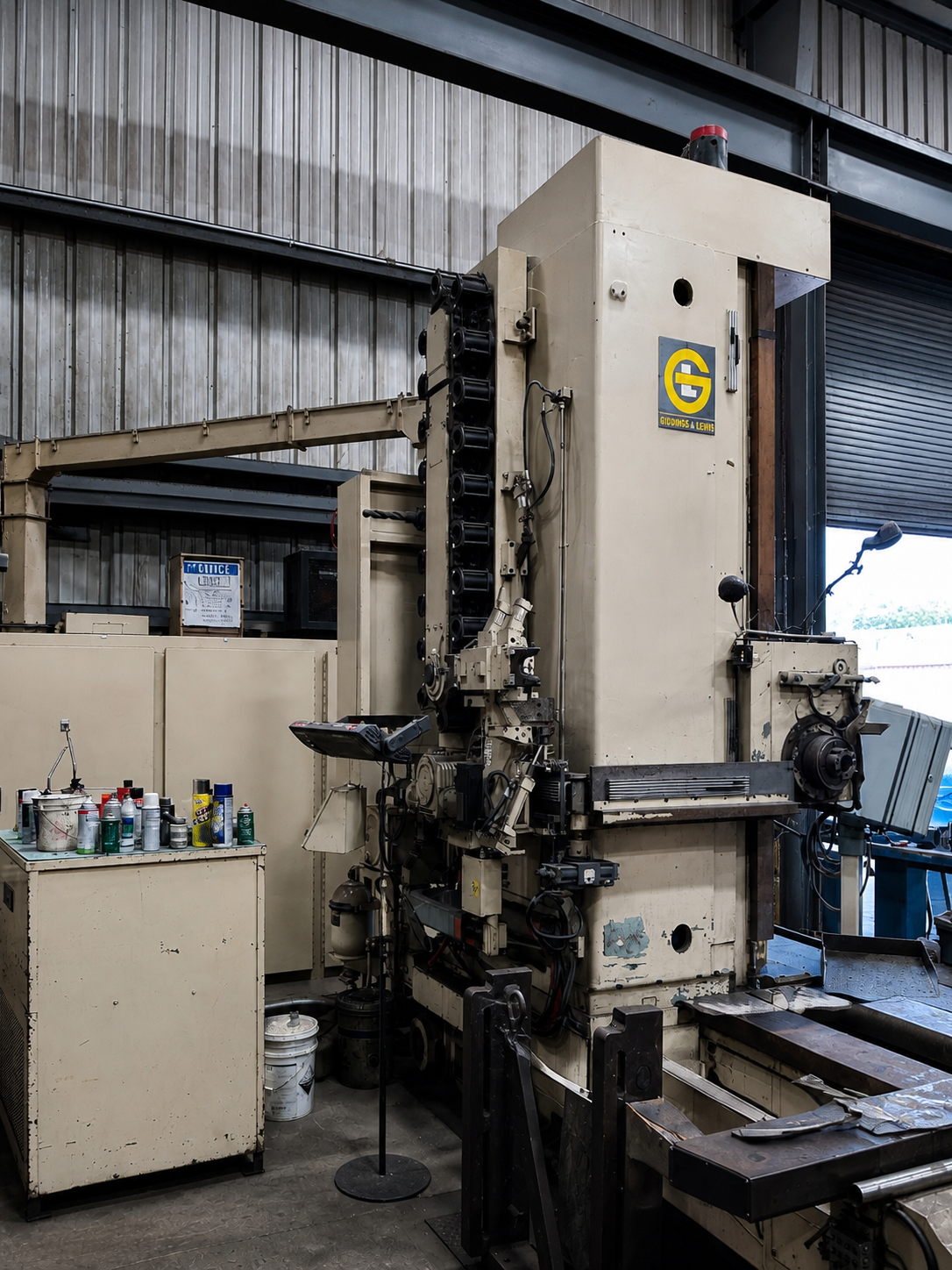

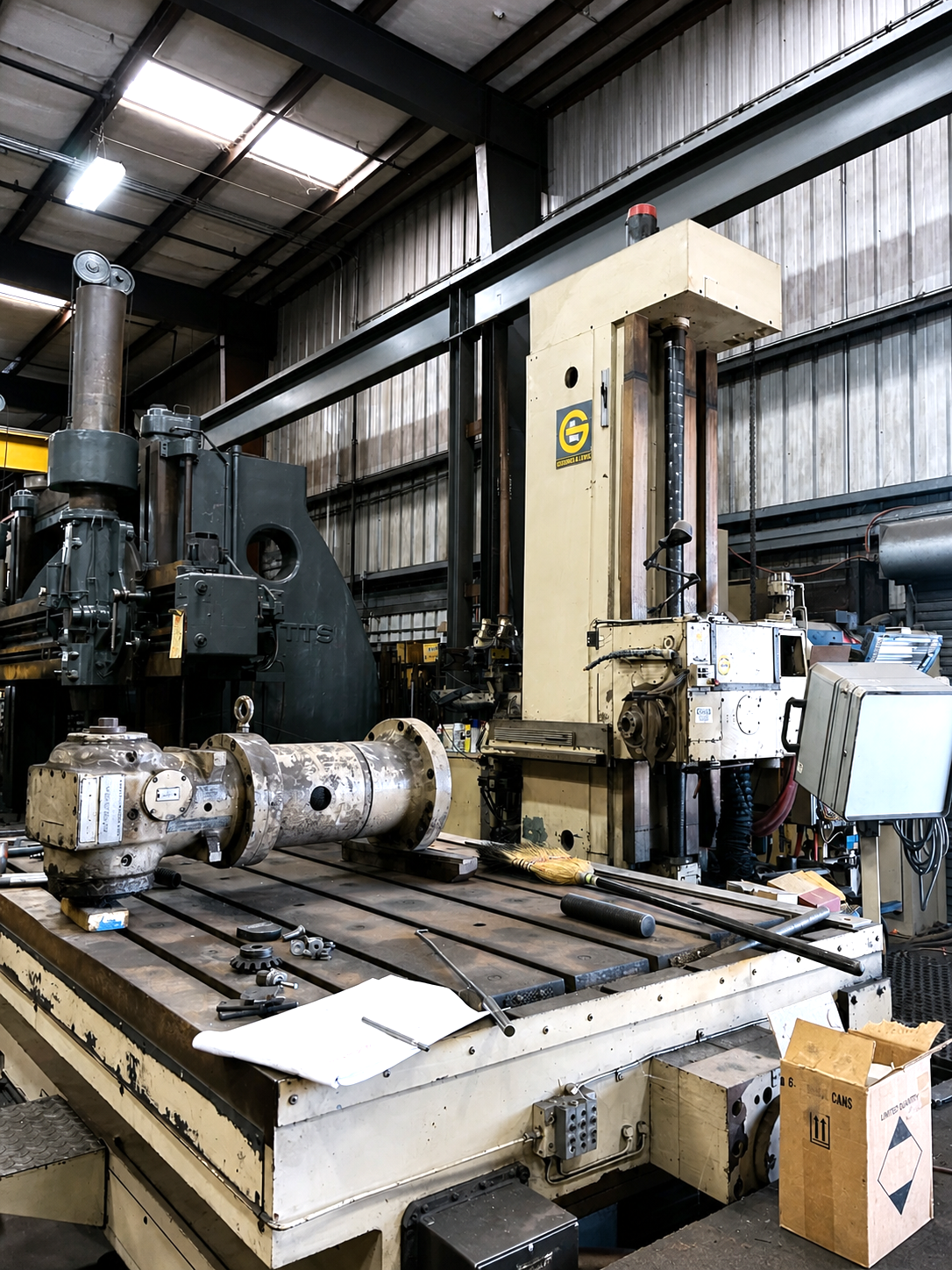

5" Giddings & Lewis 70-GS-T Horizontal Boring Mill with Fanuc CNC Controls New 1967 and remanufactured in 1994

5" Giddings & Lewis 70-GS-T Horizontal Boring Mill with Fanuc CNC Controls New 1967 and remanufactured in 1994
Manufacturer
Giddings & Lewis
Model
70-GS-T
Year
1967
Location
CA
Category
Boring Mills, Horizontal
Machine Specifications
Spindle Diameter: 5"
Spindle Speed Range: 0 – 2,000 RPM
Spindle Taper: #50
Spindle Travel: 36"
Power Drawbar: Yes
Table & Travels
Table Size: 60" x 96"
Vertical Travel: 72"
Cross Travel: 84"
Longitudinal Travel: 96"

Equipped With:


Fanuc Series 15 CNC Controls
60" x 72" Powered Rotary Table (Programmable w/ milling feeds)
Tailstock with positioning input (powered)
Vertical Head Attachment
20-Station Automatic Tool Changer
Miscellaneous Tool Holders & Collets
Machine & CNC Manuals

Machine Dimensions
Overall Size: Approx. 23' L x 159" H x 159" W
Disclaimer
Preliminary specifications are provided for general guidance only and may change without notice. They are believed to be accurate but are not guaranteed. All specifications, dimensions, capacities, weights, and performance figures should be independently verified by the buyer prior to purchase or use. Bridgeline Machinery Corp. makes no representations or warranties, express or implied, regarding the completeness, accuracy, or suitability of any machine specifications, and shall not be liable for any errors or omissions.
