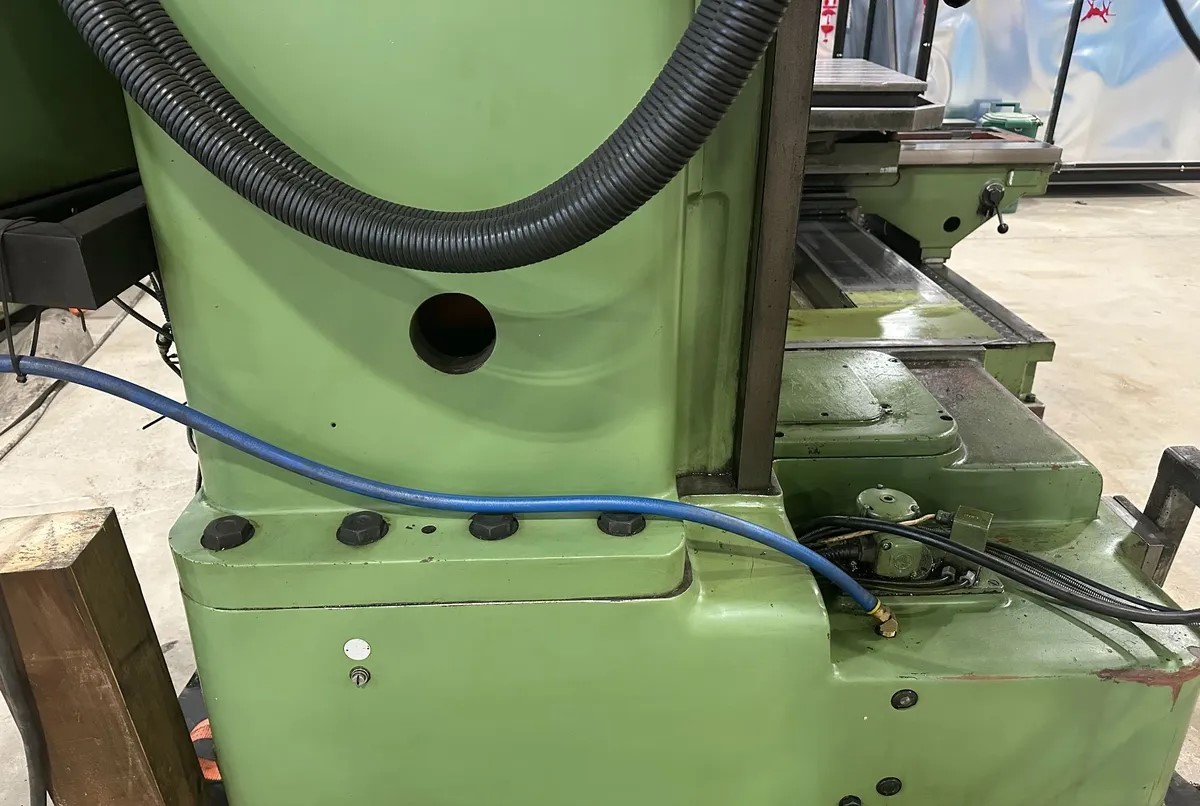

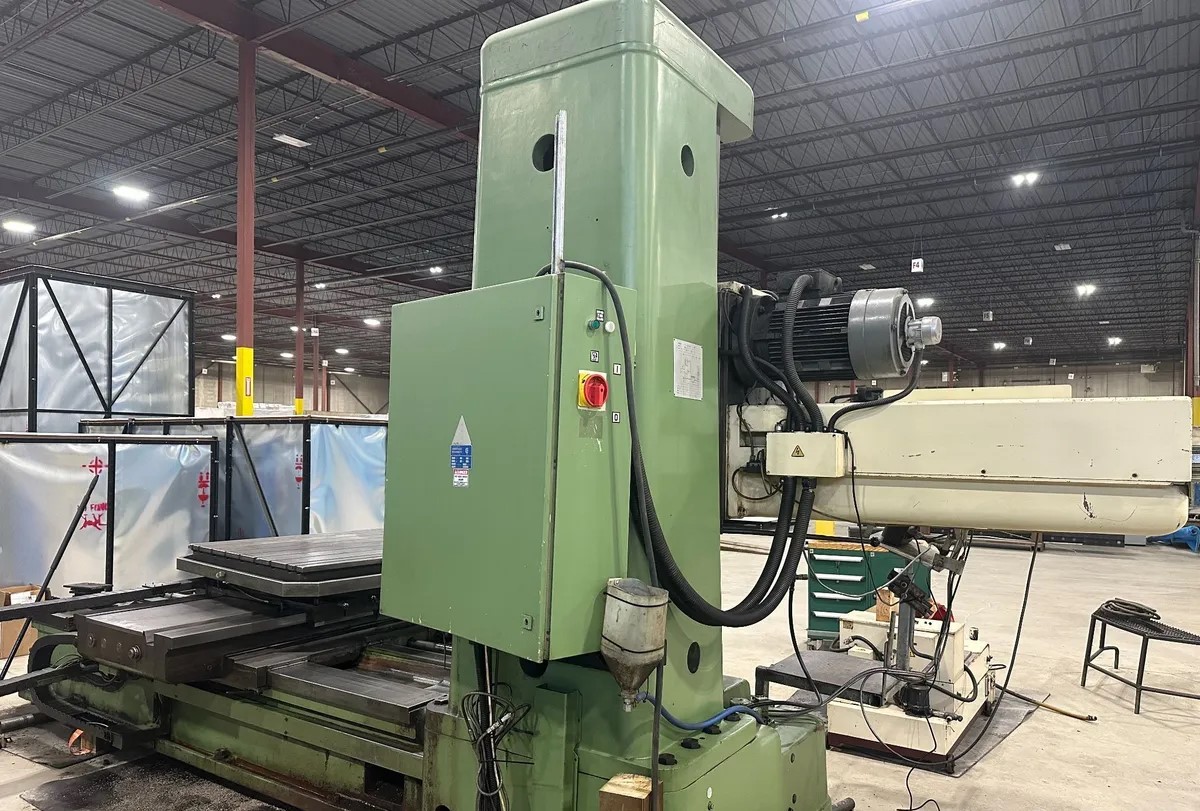

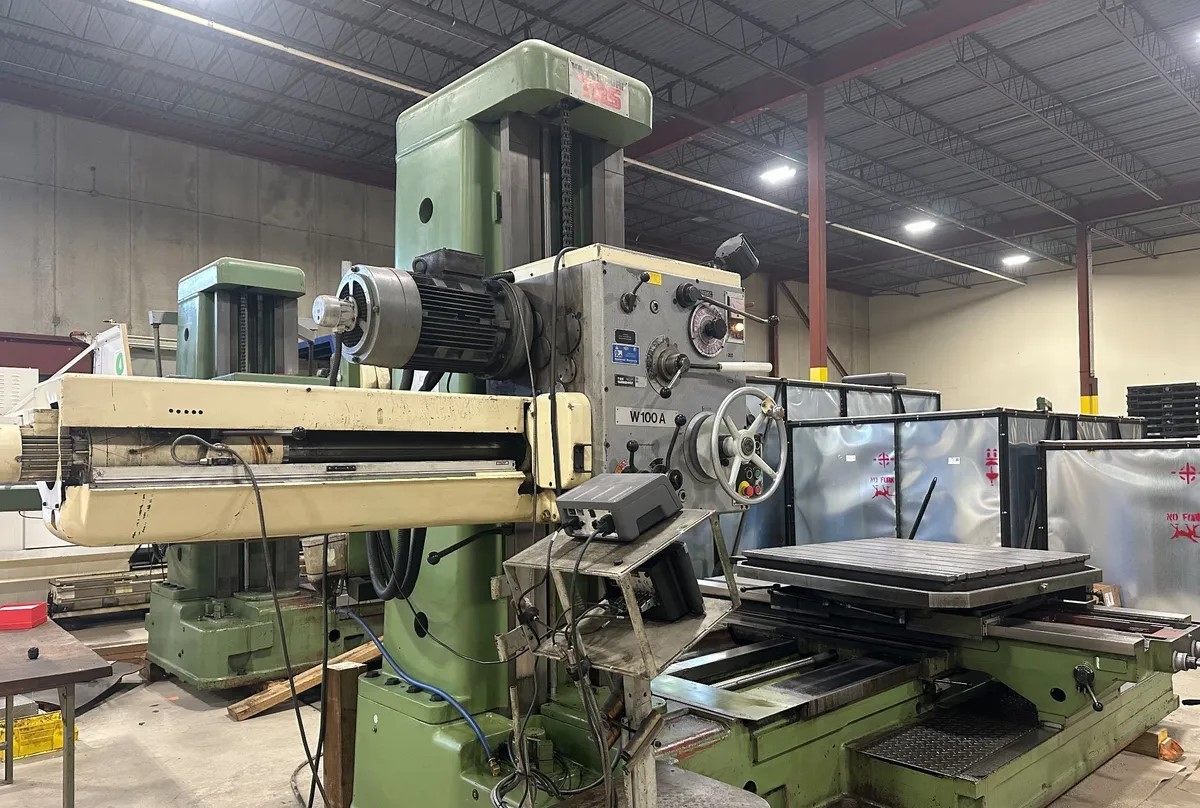

Machine Specifications

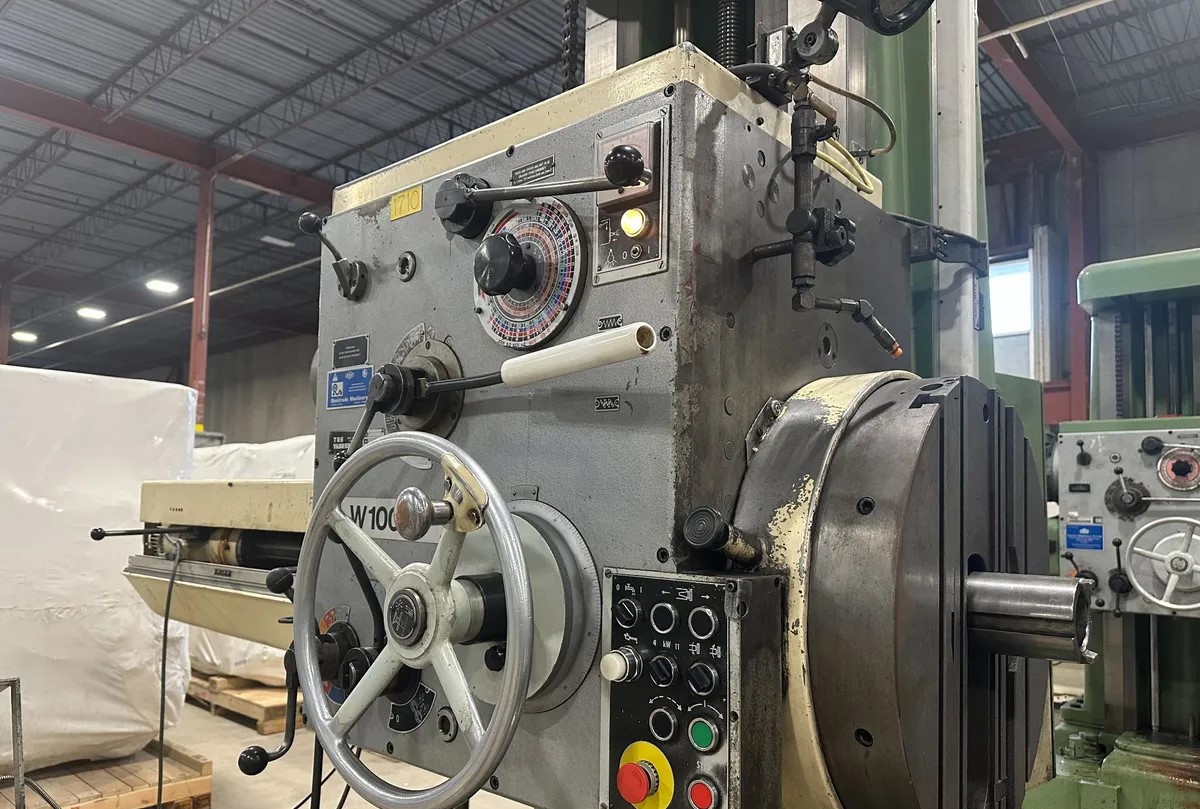

SPINDLE DIAMETER 4"
SPINDLE TAPER 50 TAPER

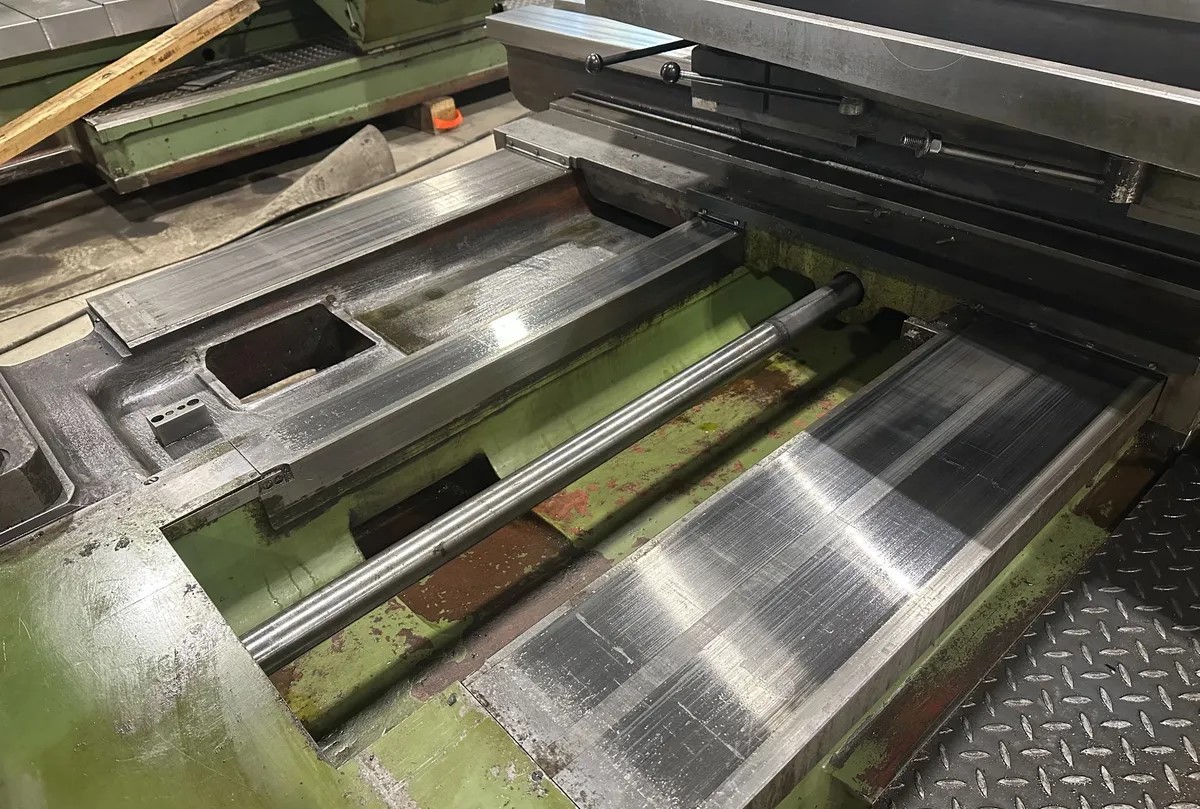

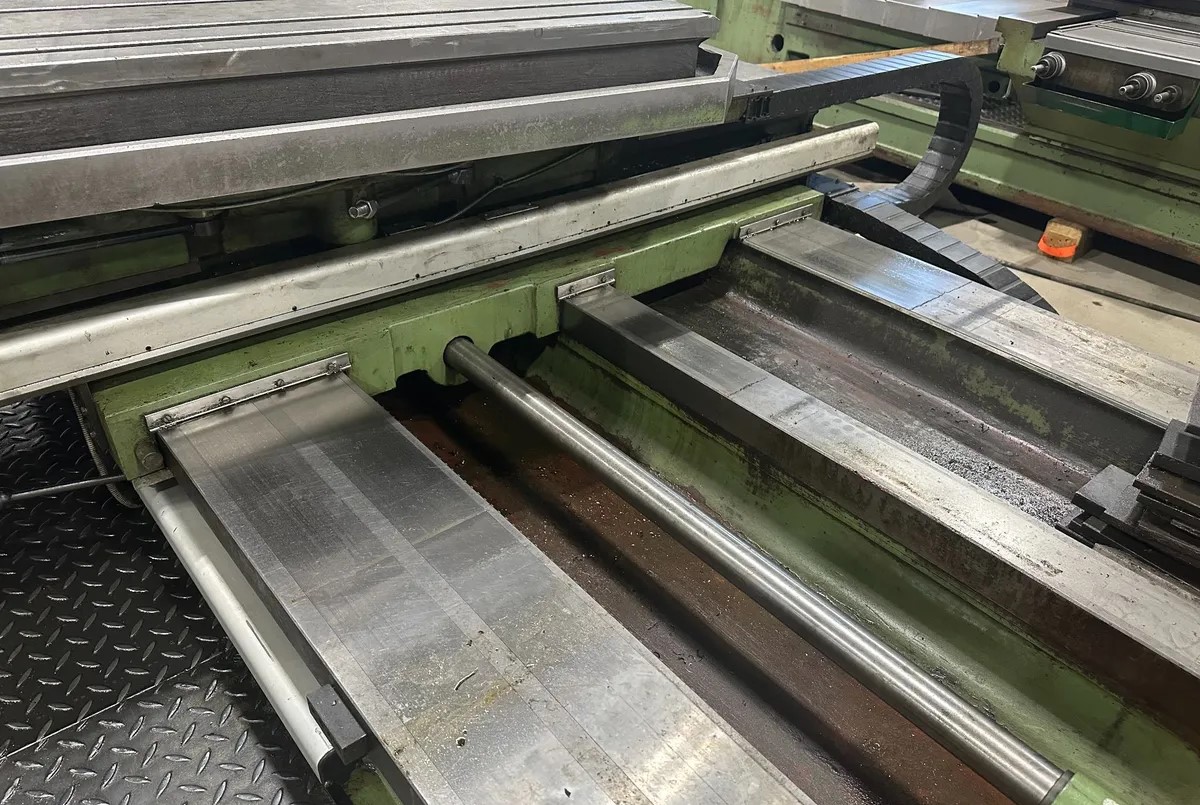

X-AXIS - TABLE CROSS TRAVEL 63"
Y-AXIS - VERTICAL TRAVEL OF SPINDLE 44"
W-AXIS - SPINDLE TRAVEL 35.43"

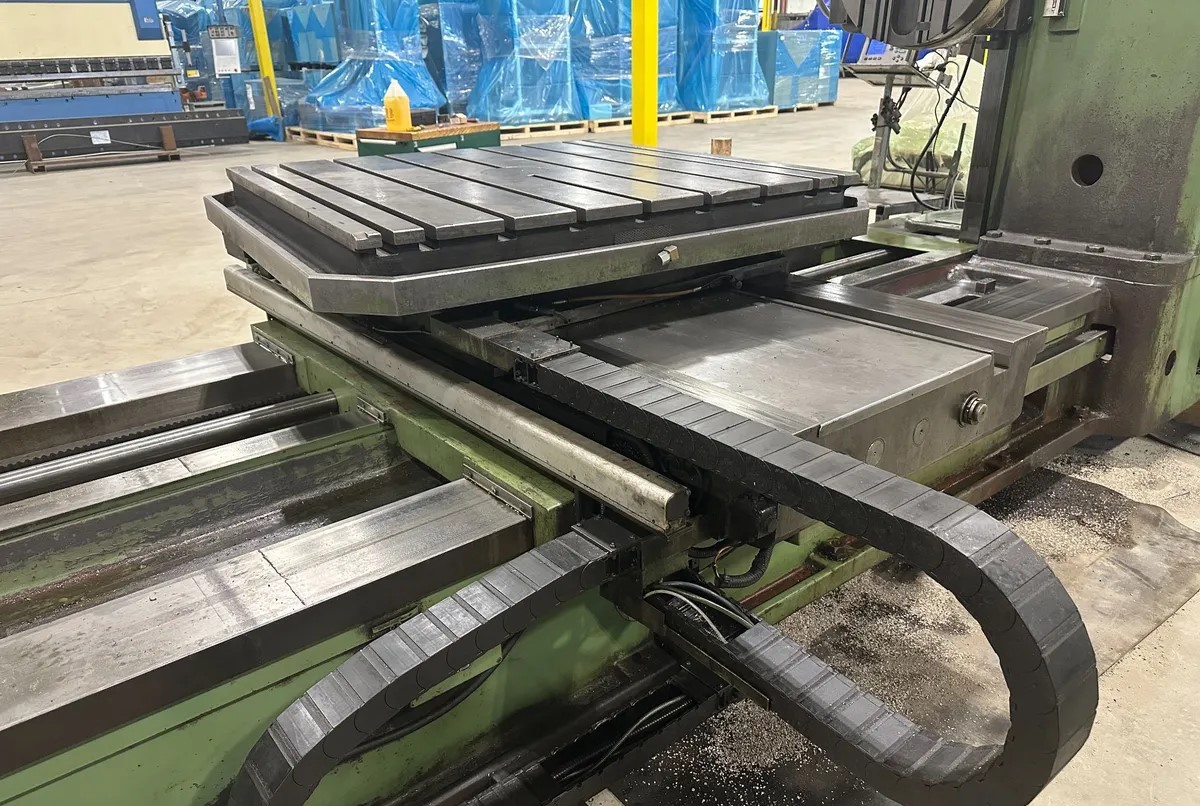

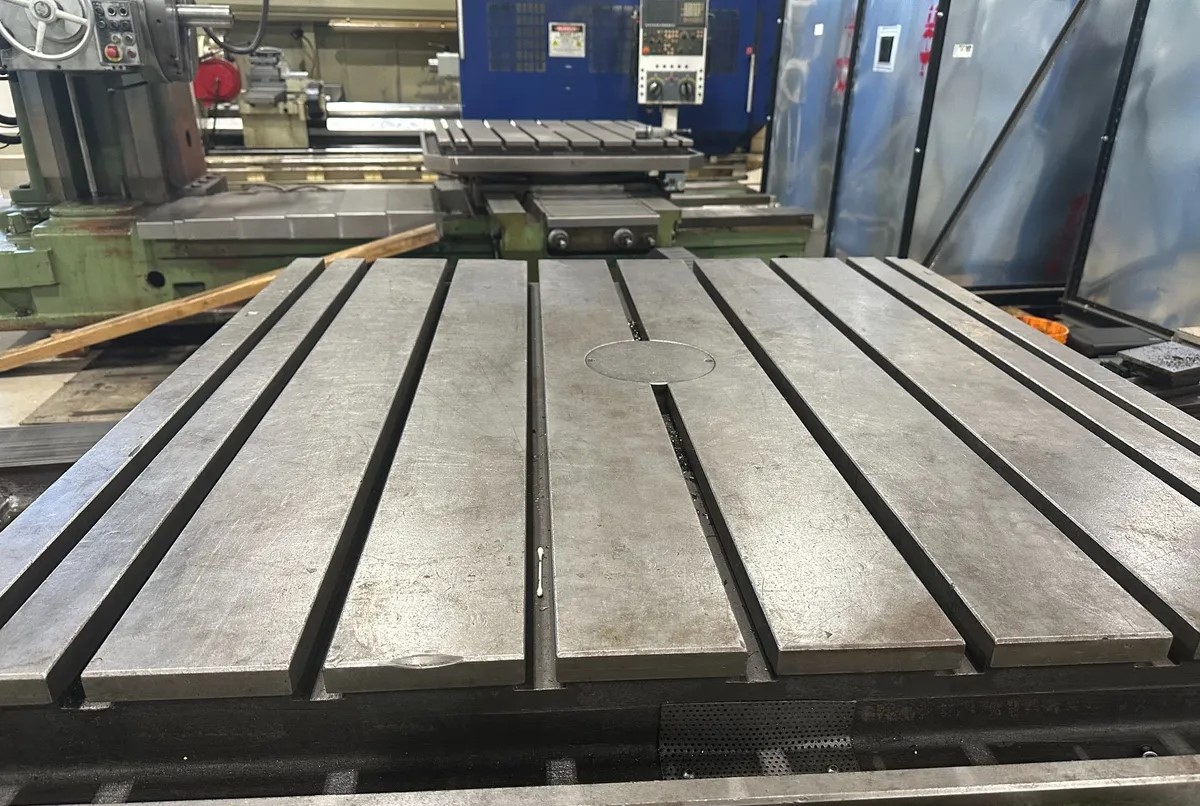

TABLE WIDTH 49.2"
TABLE LENGTH 49.2"
TABLE LOAD CAPACITY 6600 lb
SPINDLE MOTOR 15 hp
SPINDLE SPEED 1,120 RPM
Weight 34,000 LBS
EQUIPPED WITH:

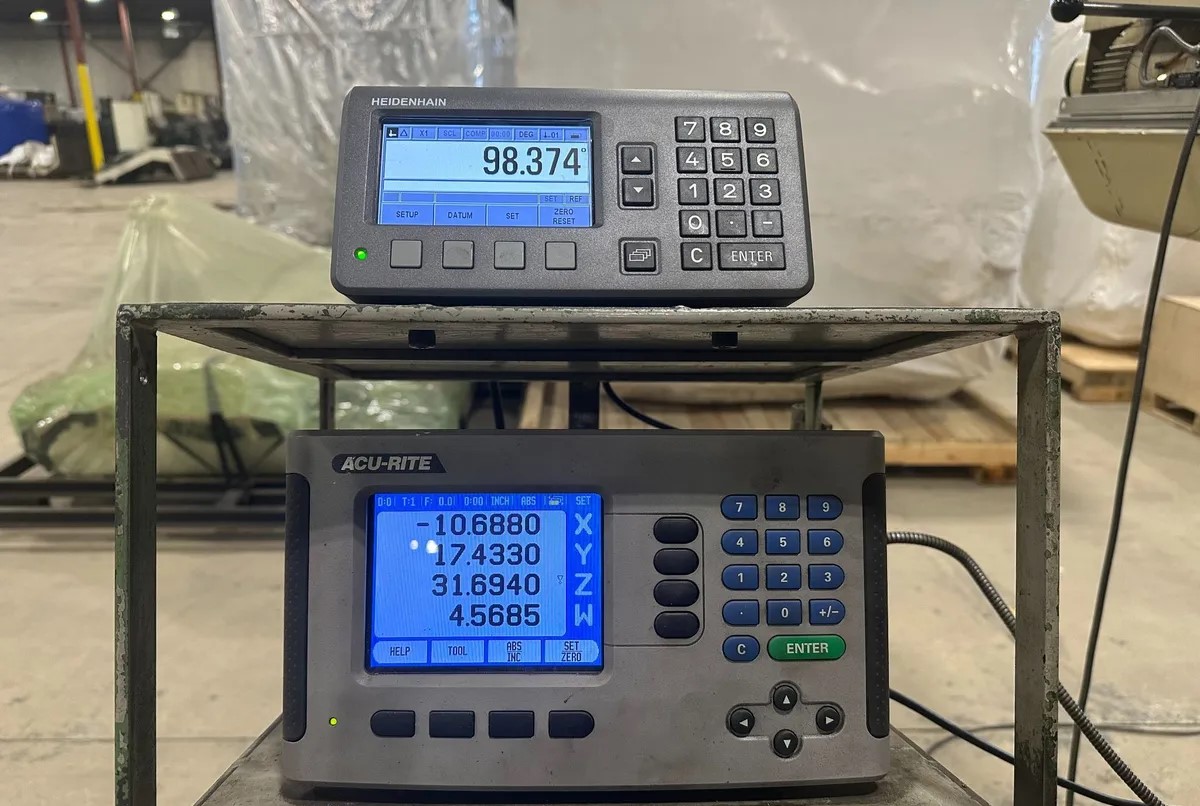

4-AXIS ACU‑RITE DRO DISPLAY & SCALES
NEW HEIDENHAIN DRO DISPLAY FOR B‑AXIS TABLE WITH ROTARY ENCODER TO .001 DEGREE

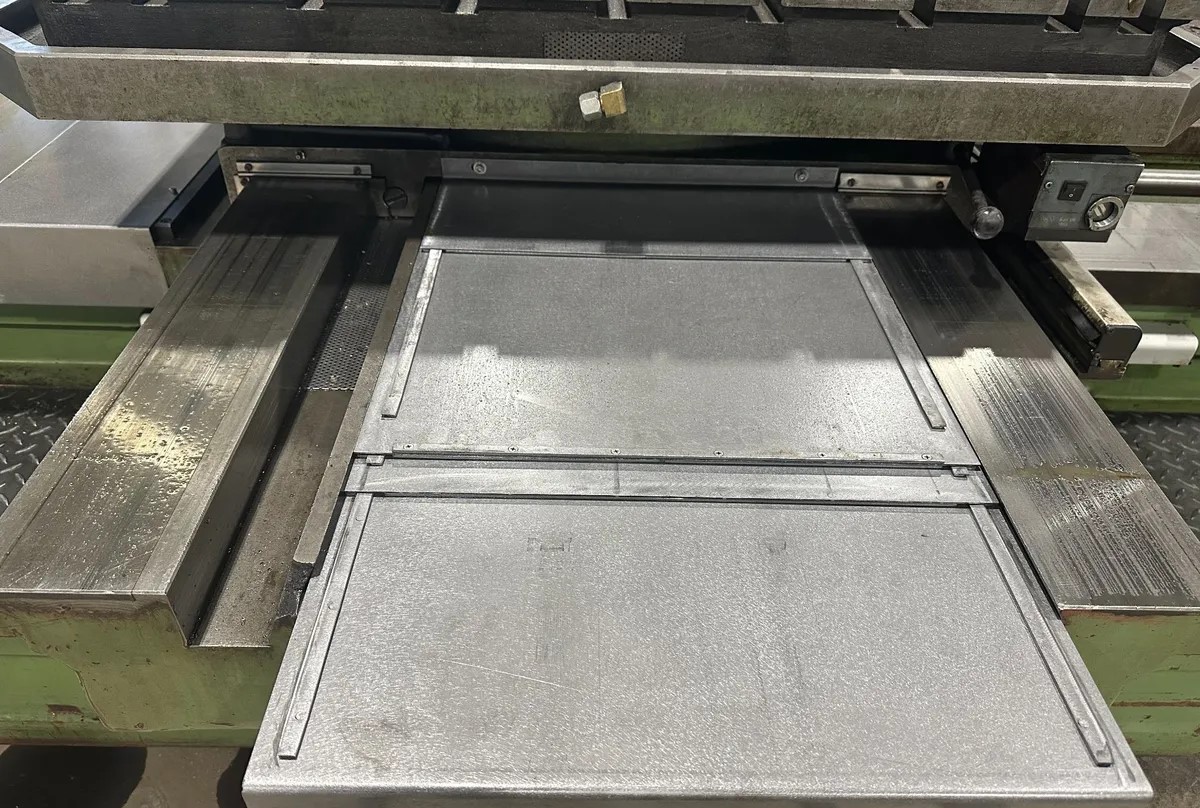

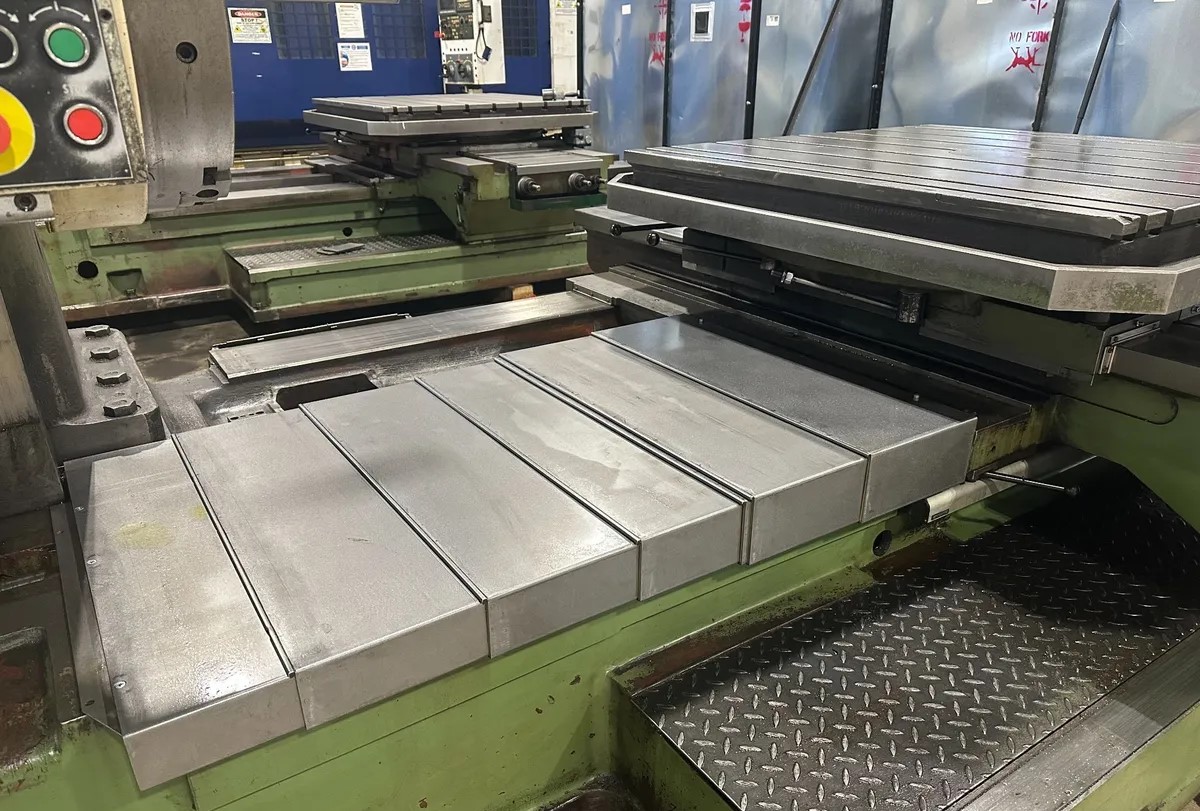

NEW X‑AXIS COVERS
NEW Z‑AXIS COVER
50 TAPER POWER DRAW BAR WITH VARIOUS PULL STUDS / RETENTION KNOBS
BUILT‑IN FACING HEAD
COOLANT
MACHINE IS WIRED FOR 575V/3/60
