Machine Specifications
MAX SWING 31.75"
MAX CUTTING DIAMETER 15"
MAX CUTTING LENGTH 21"
CHUCK SIZE 8.3"
BAR CAPACITY 2"
SPINDLE NOSE A2-6
SPINDLE MOTOR 20 hp
SPINDLE SPEED 4,000 RPM

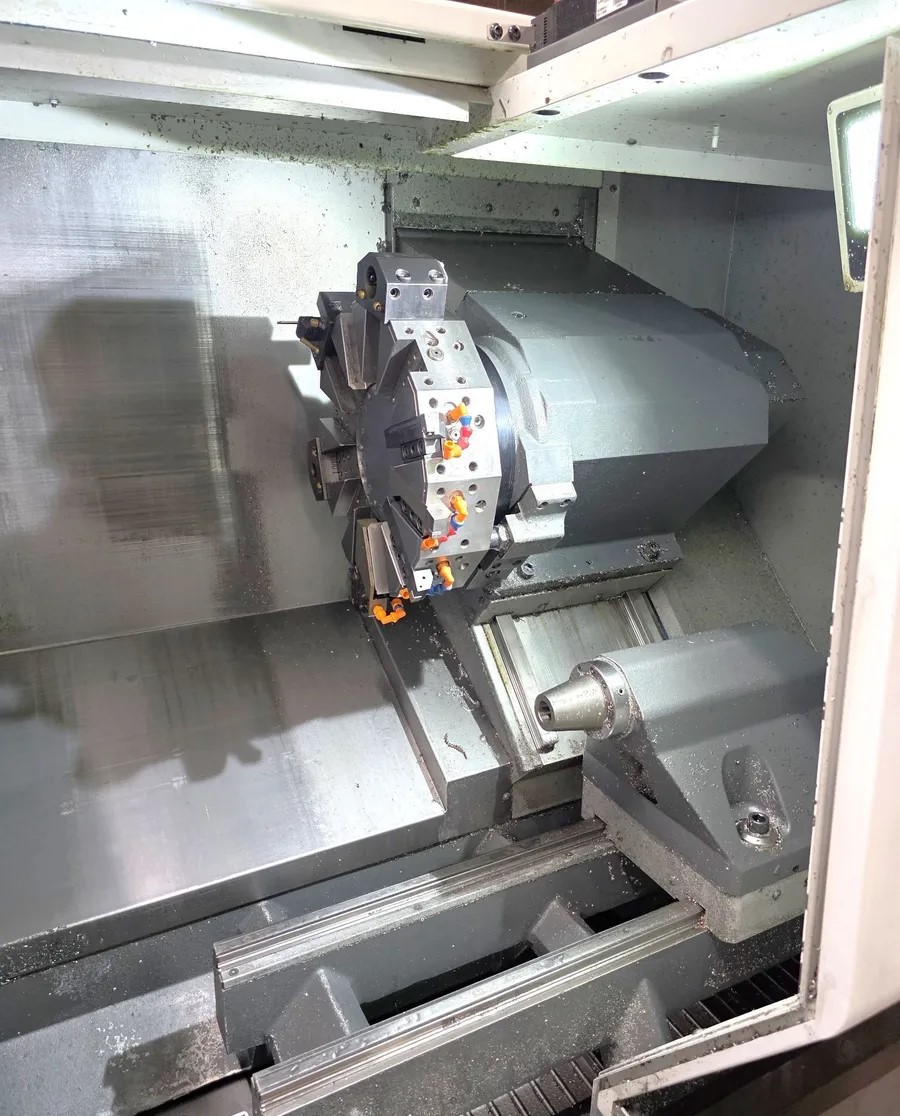

TURRET POSITIONS 12
TURRET TYPE BOLT-ON
EQUIPPED WITH:

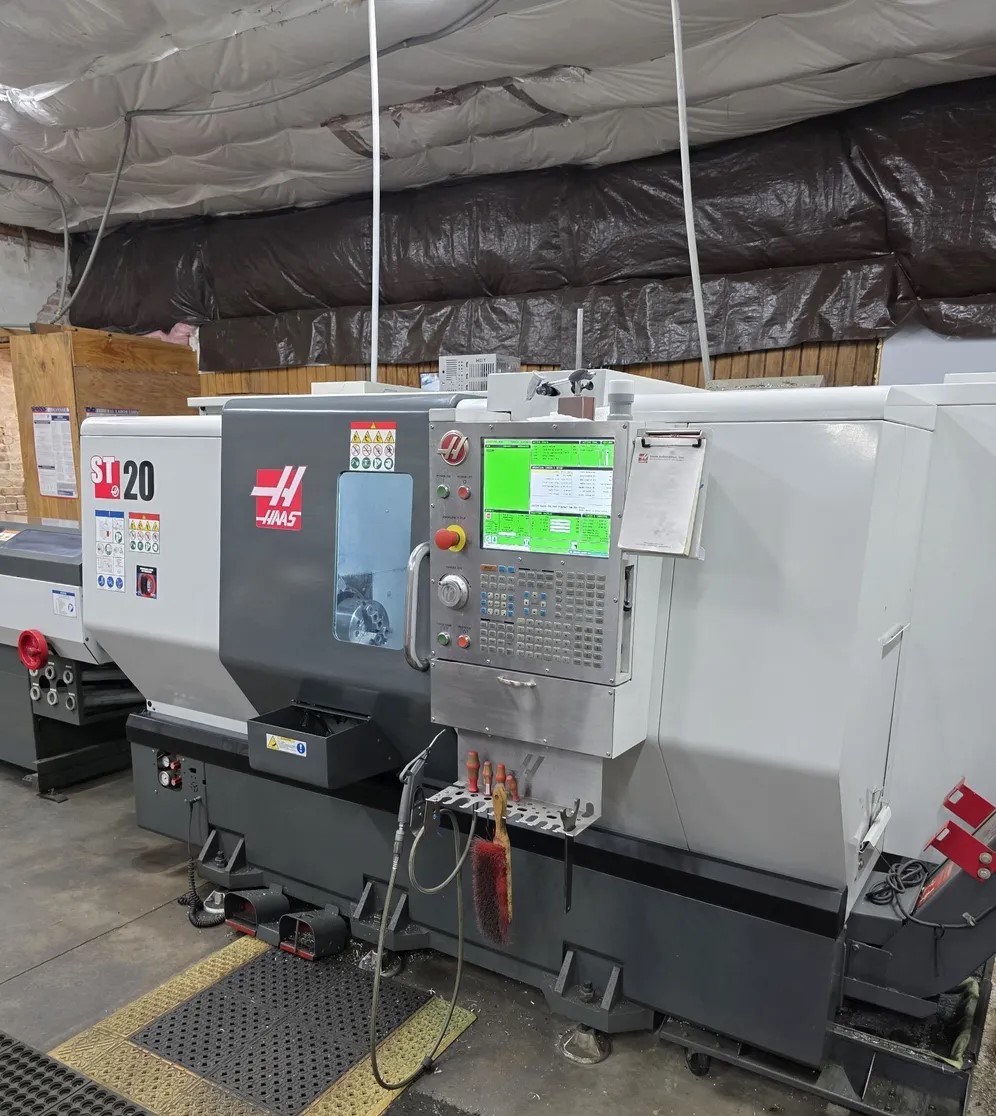

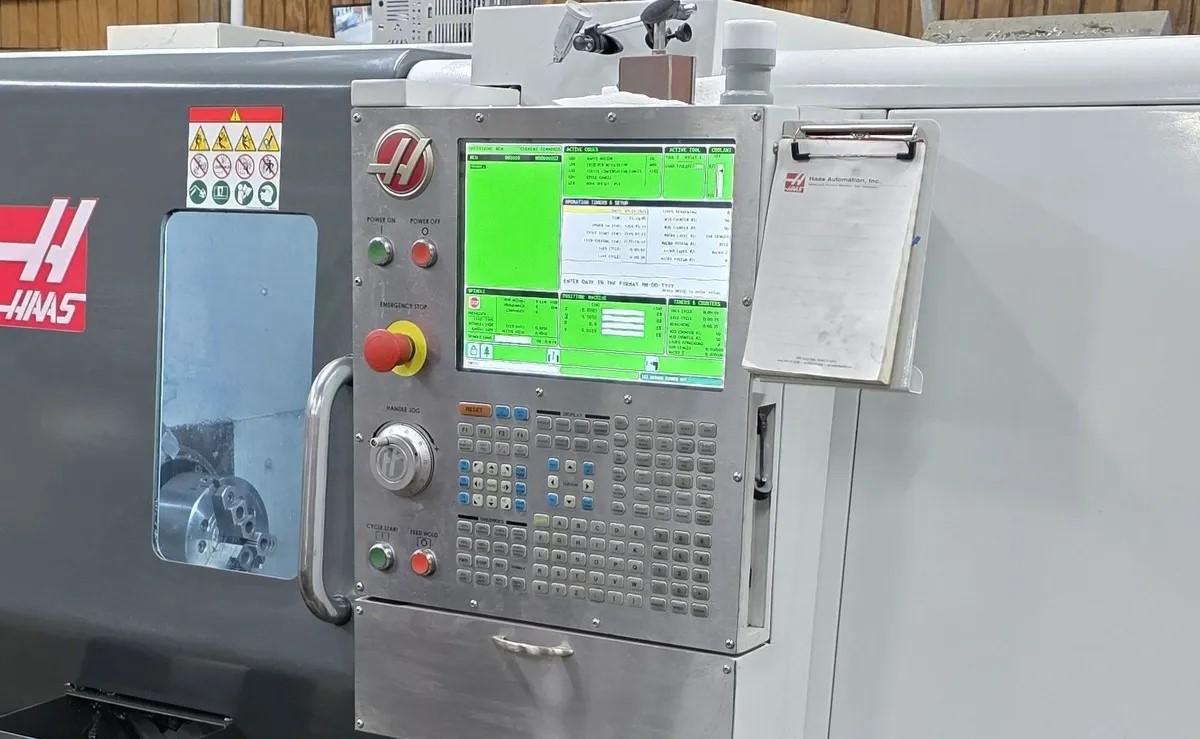

HAAS CNC CONTROL

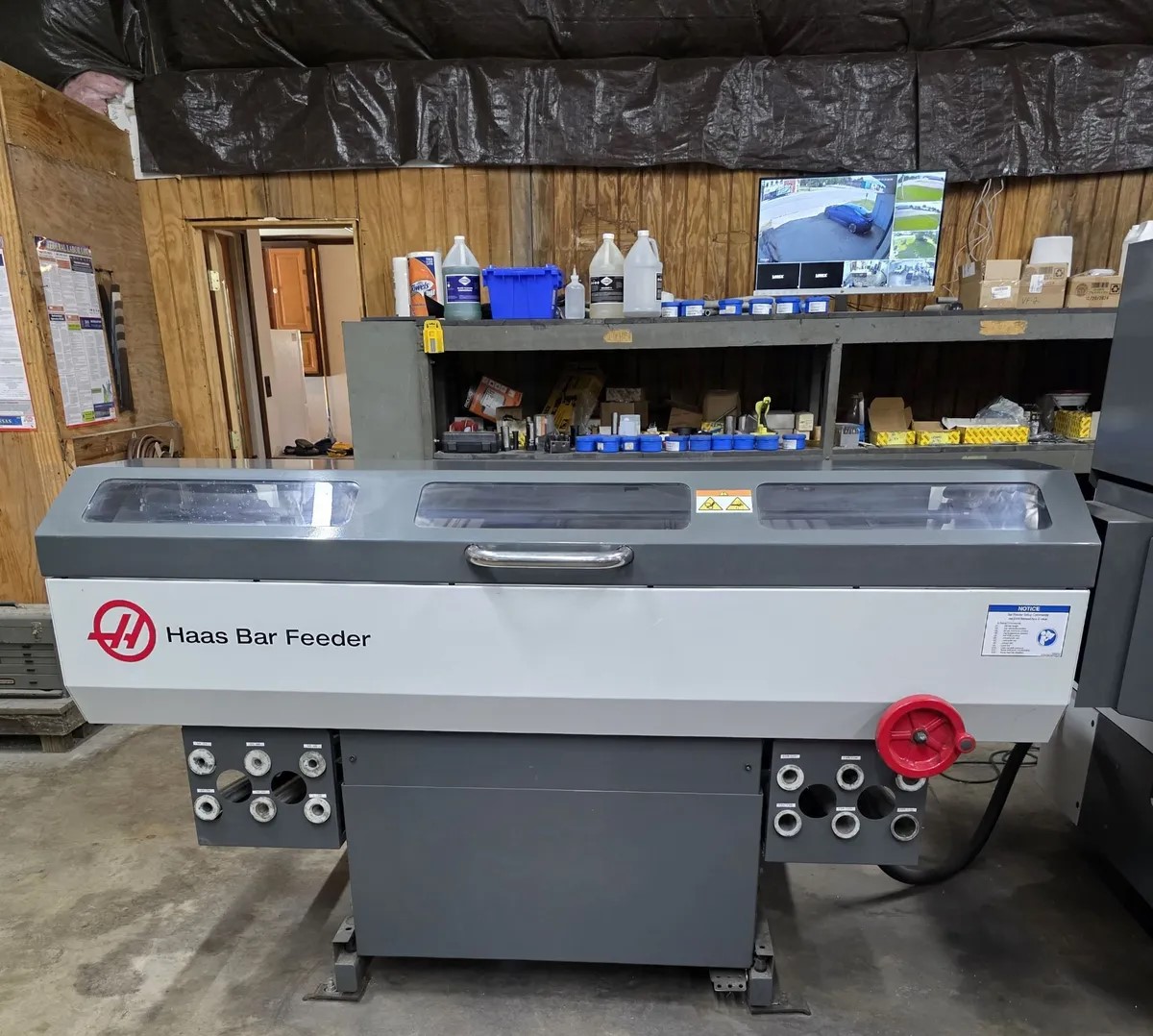

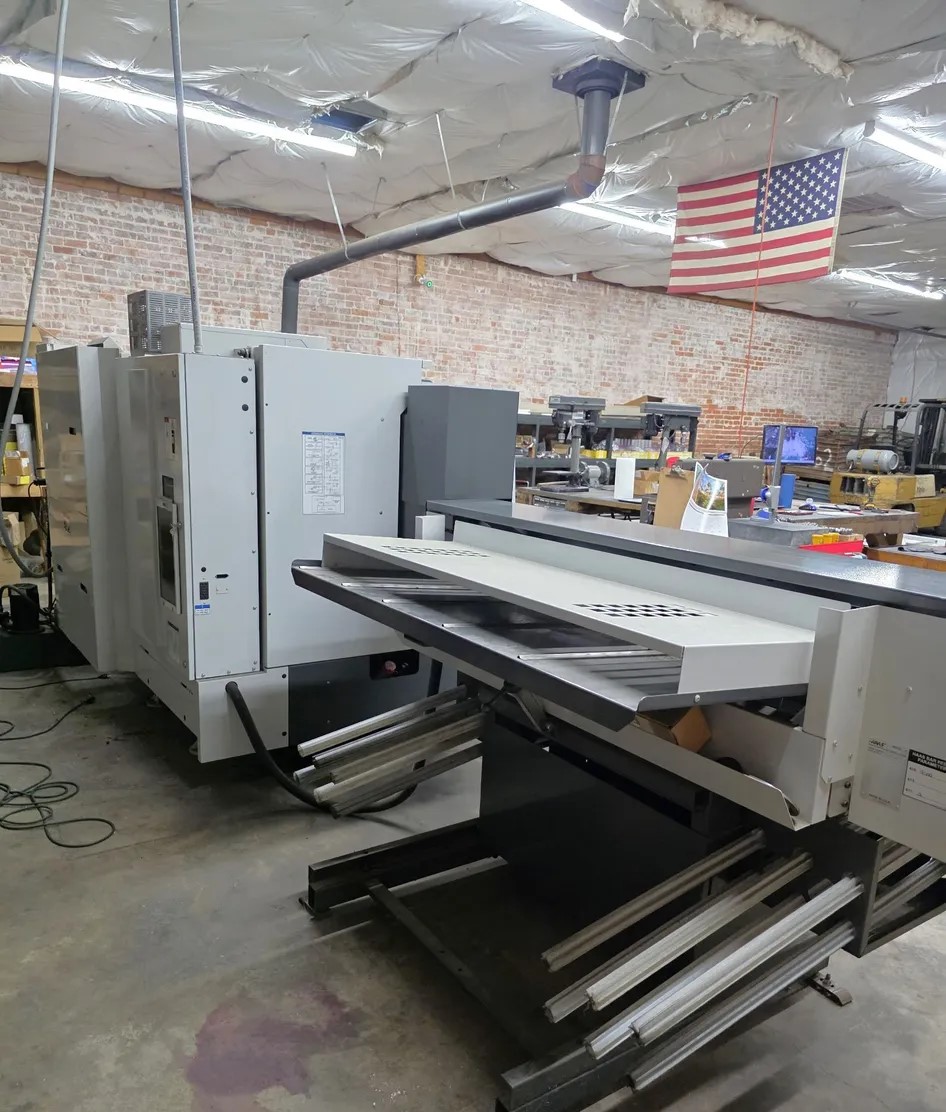

HAAS BAR FEEDER

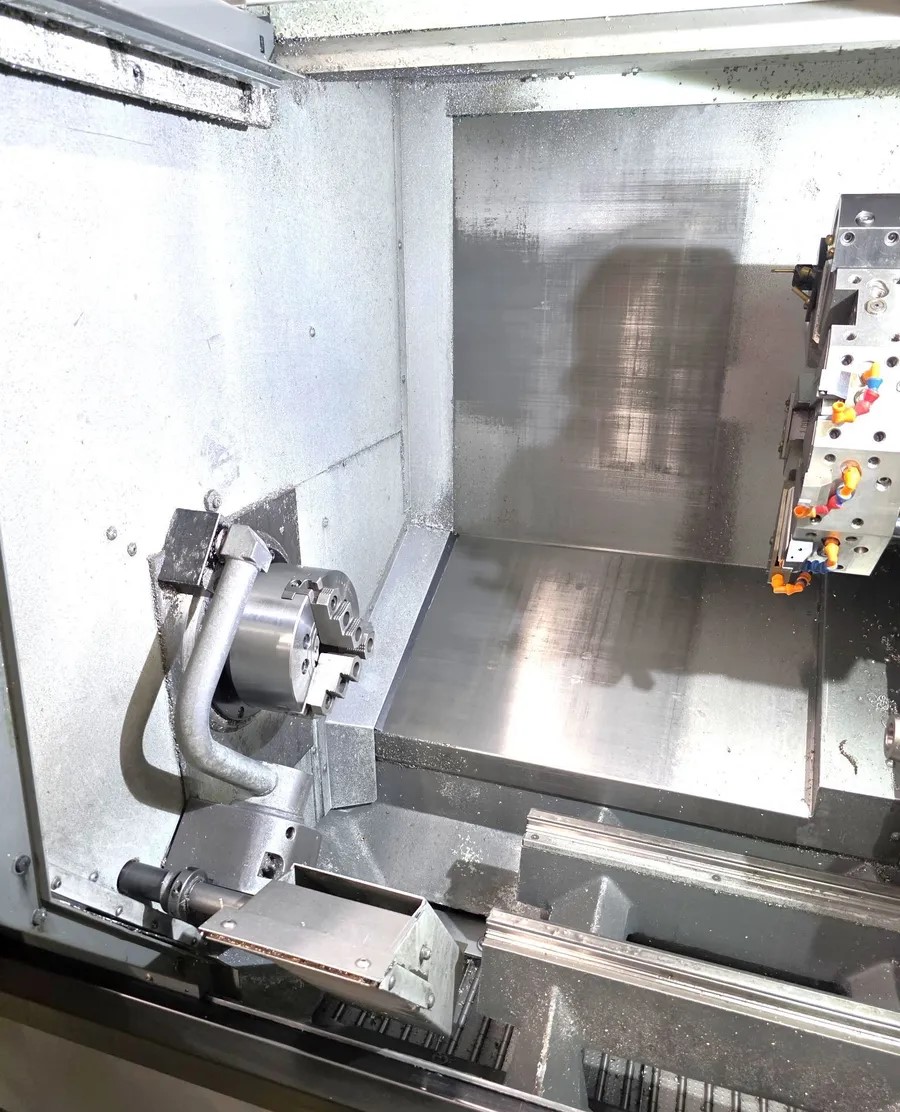

8" 3-JAW HYDRAULIC CHUCK

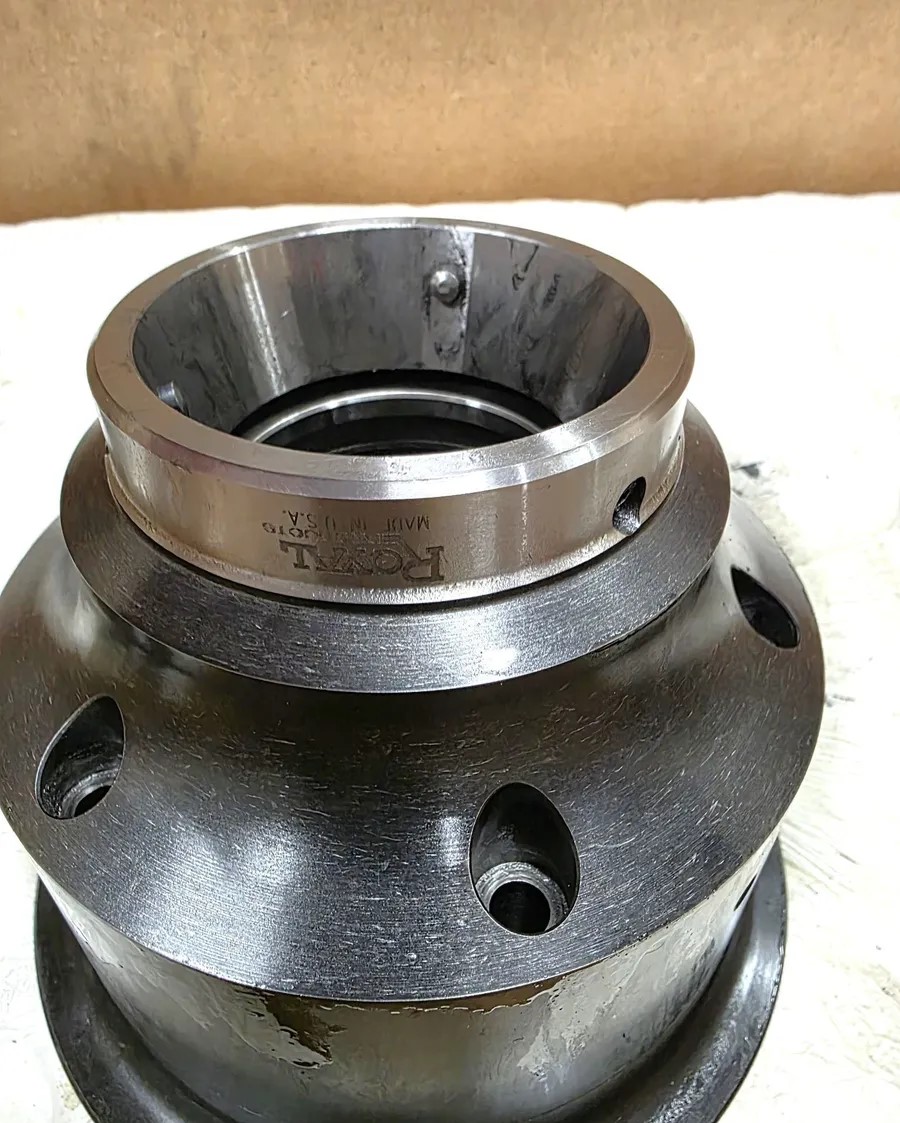

ROYAL COLLET CHUCK
PROGRAMMABLE TAILSTOCK

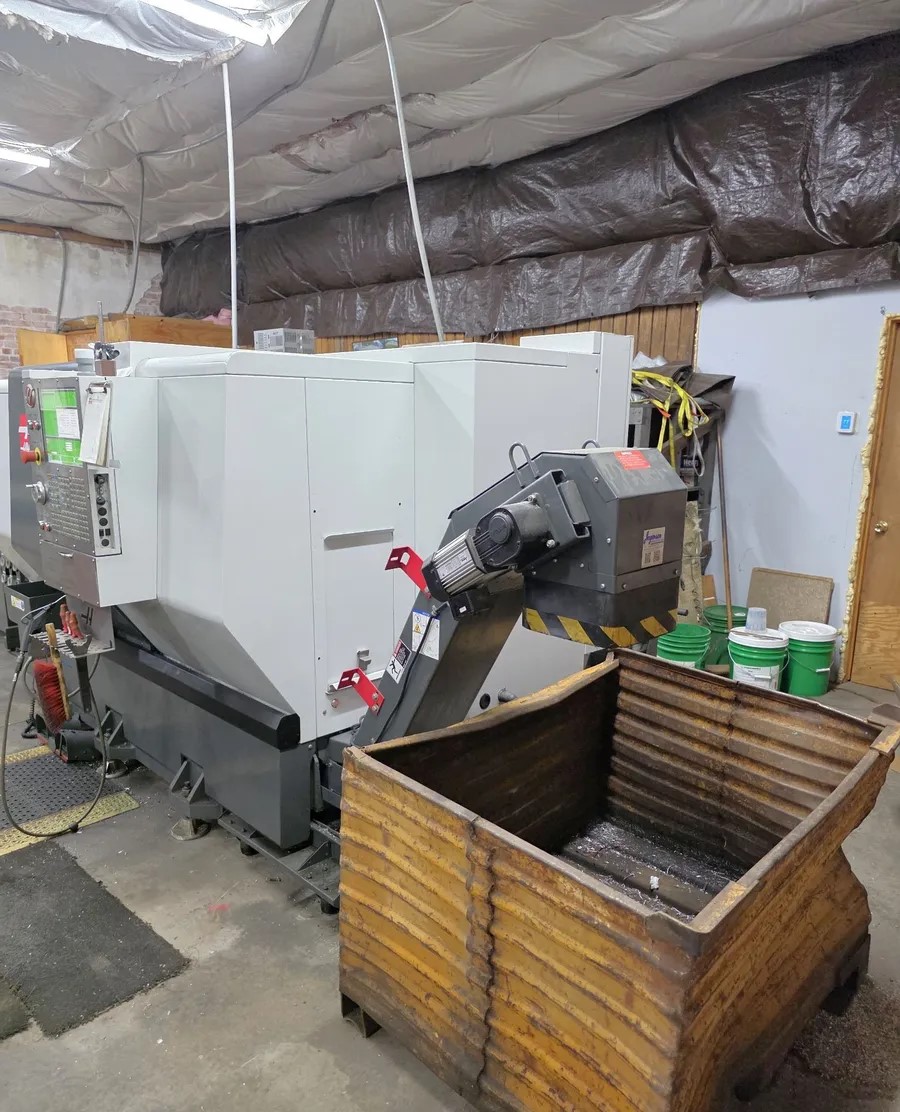

JORGENSEN CHIP CONVEYOR
TOOL PRESETTER
PARTS CATCHER
COOLANT TANK
USB PORT
M19 SPINDLE ORIENT
QUICK CODE
RIGID TAPPING
SPINDLE LOAD MONITOR

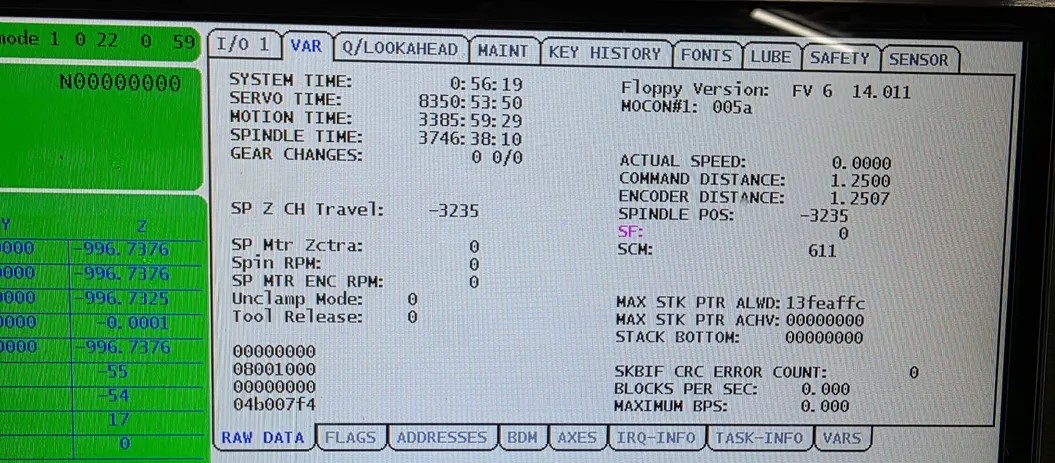

HOURS OF USE AS OF 1/28/2026:
* SERVO TIME: 8,350 HOURS
* MOTION TIME: 3,385 HOURS
* SPINDLE TIME: 3,746 HOURS
REPLACEMENT COST FOR ABOVE EQUIPPED LATHE SYSTEM IF PURCHASED NEW TODAY: $125,000
