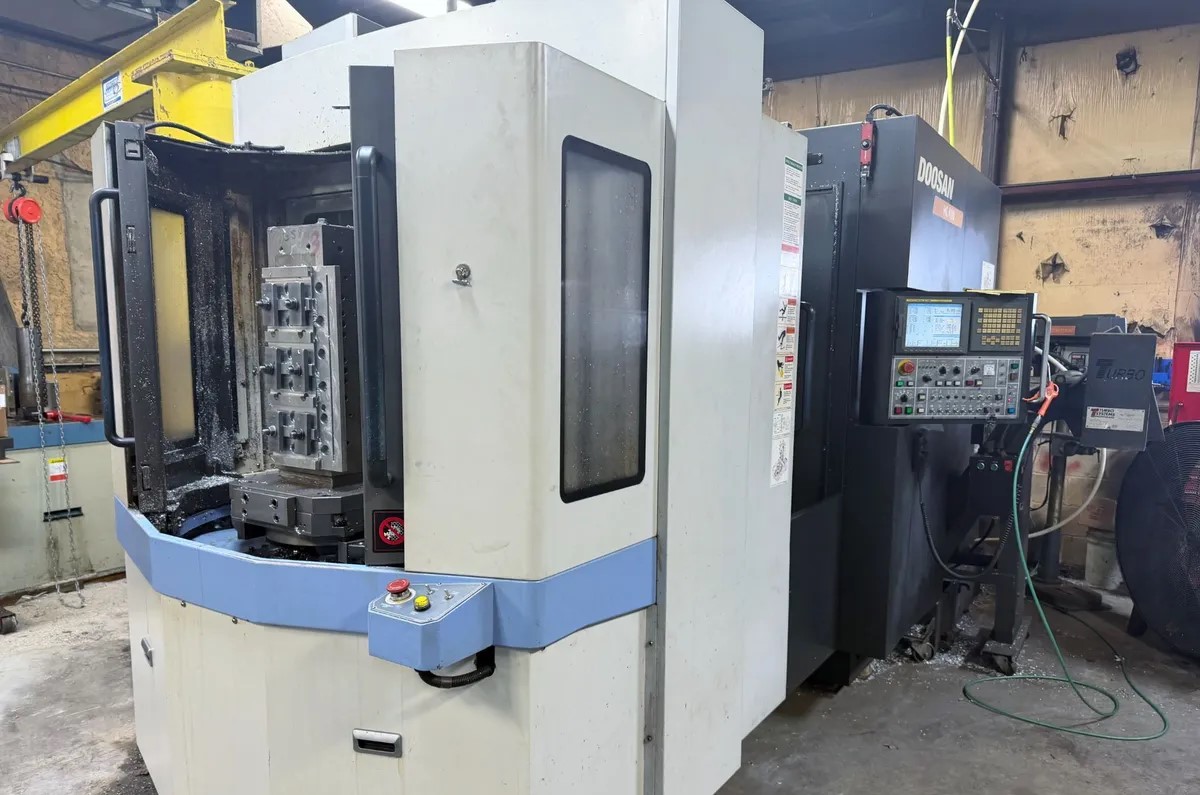

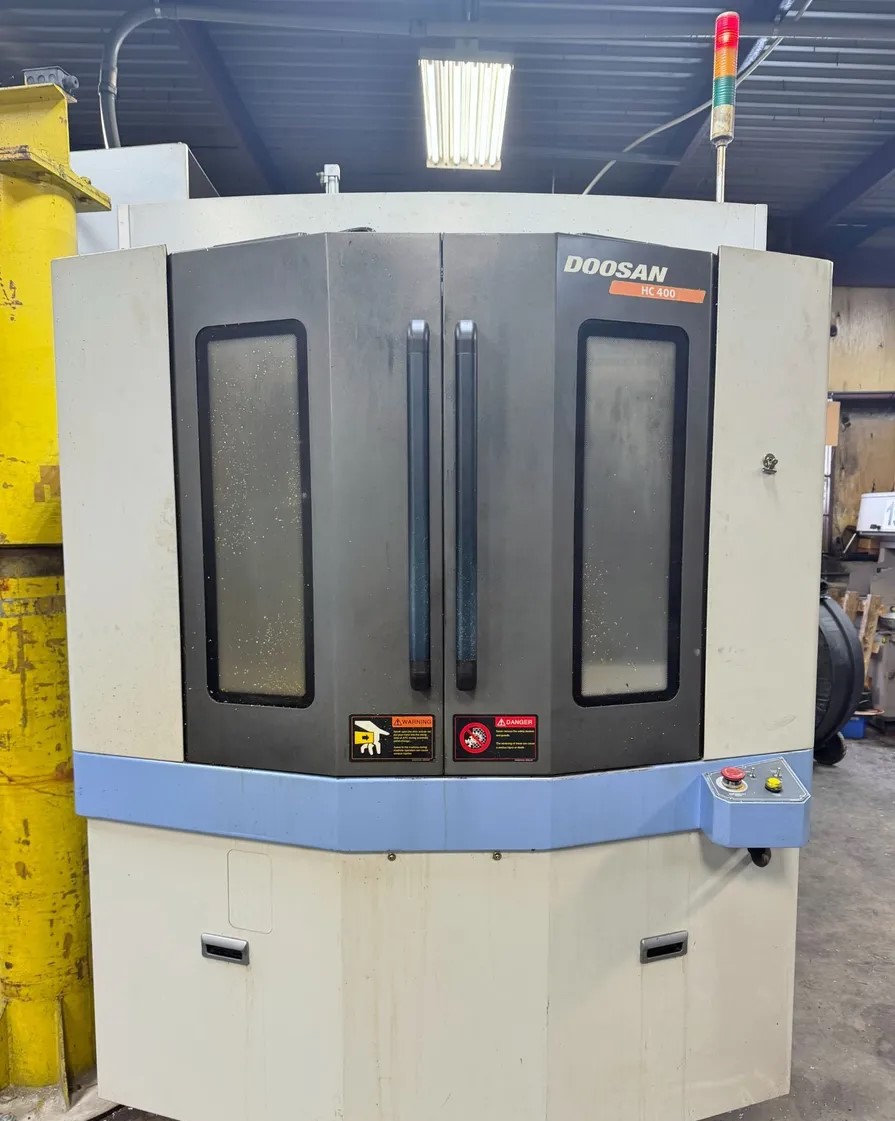

Machine Specifications
PALLET WIDTH 15.75"
PALLET LENGTH 15.75"
PALLET INDEXING 1 DEGREE
NUMBER OF PALLETS 2
X-AXIS TRAVEL 23.62"
Y-AXIS TRAVEL 22.05"
Z-AXIS TRAVEL 22.24"
SPINDLE SPEED 10,000 RPM
SPINDLE MOTOR 25 hp
SPINDLE TAPER CAT 40

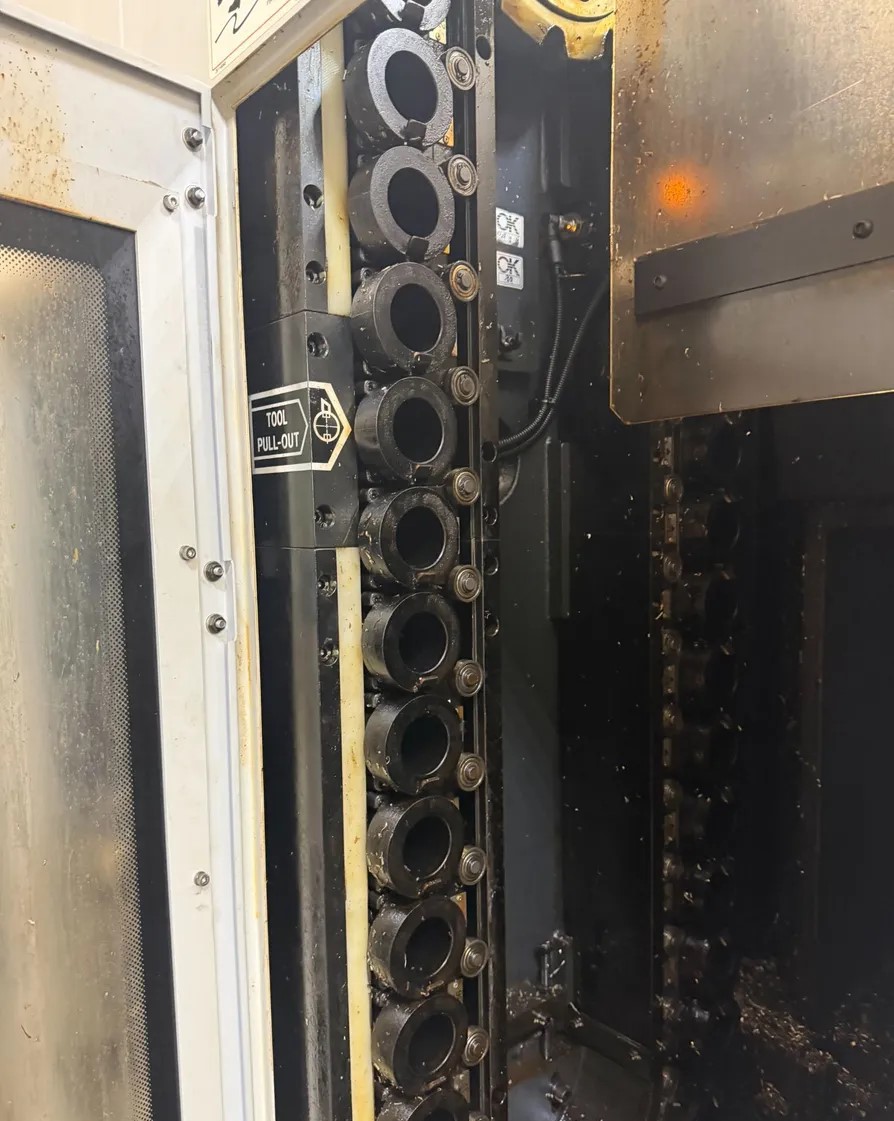

TOOL POSITIONS (ATC) 40
EQUIPPED WITH:

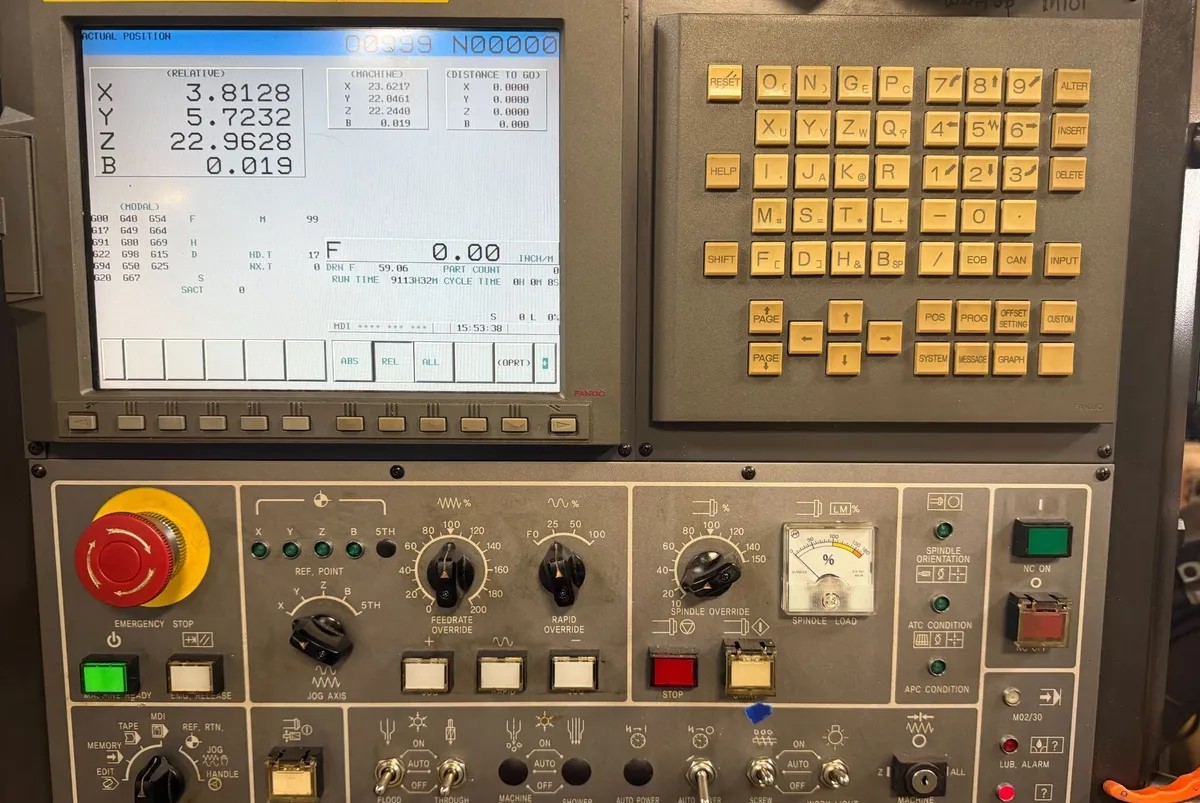

FANUC 21i-MB CONTROL
THROUGH-SPINDLE COOLANT
RENISHAW TOUCH SETTER
10,000 RPM SPINDLE
1-DEGREE INDEXING
40 TOOL POSITIONS
CHIP CONVEYOR

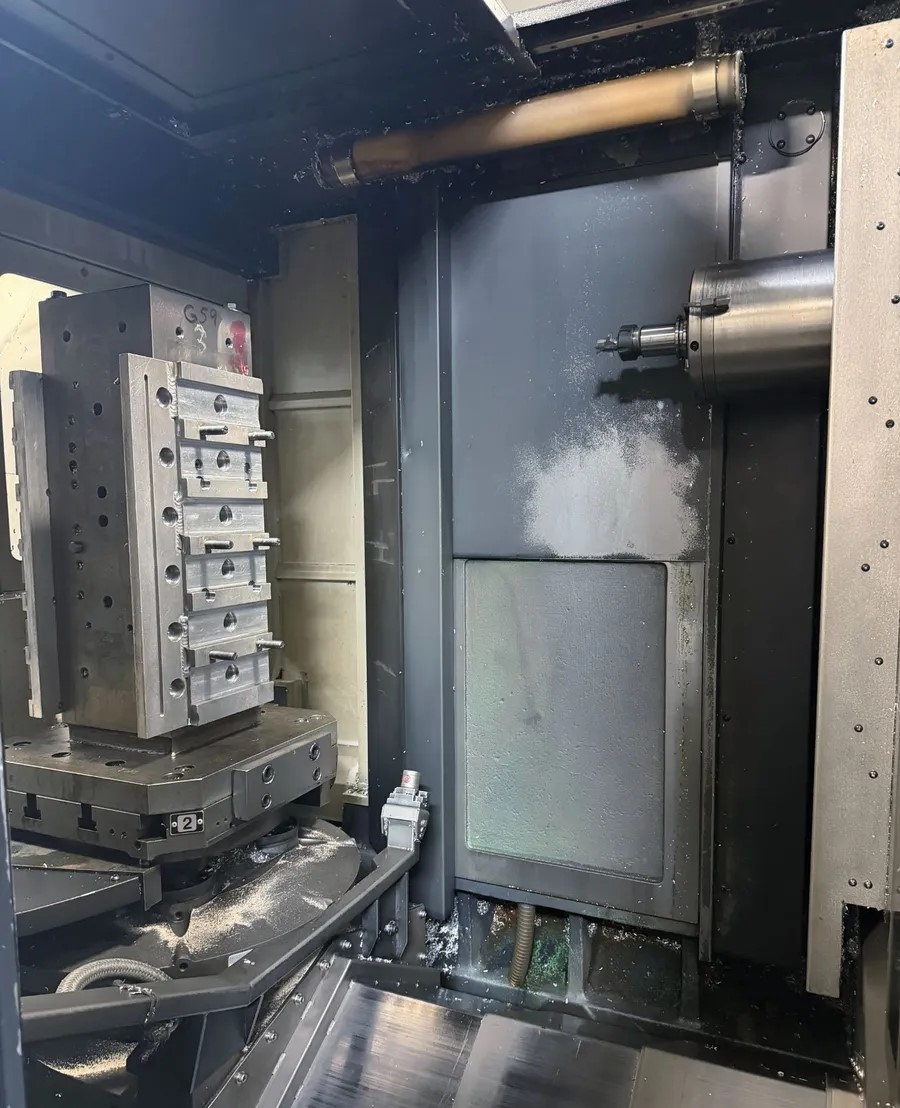

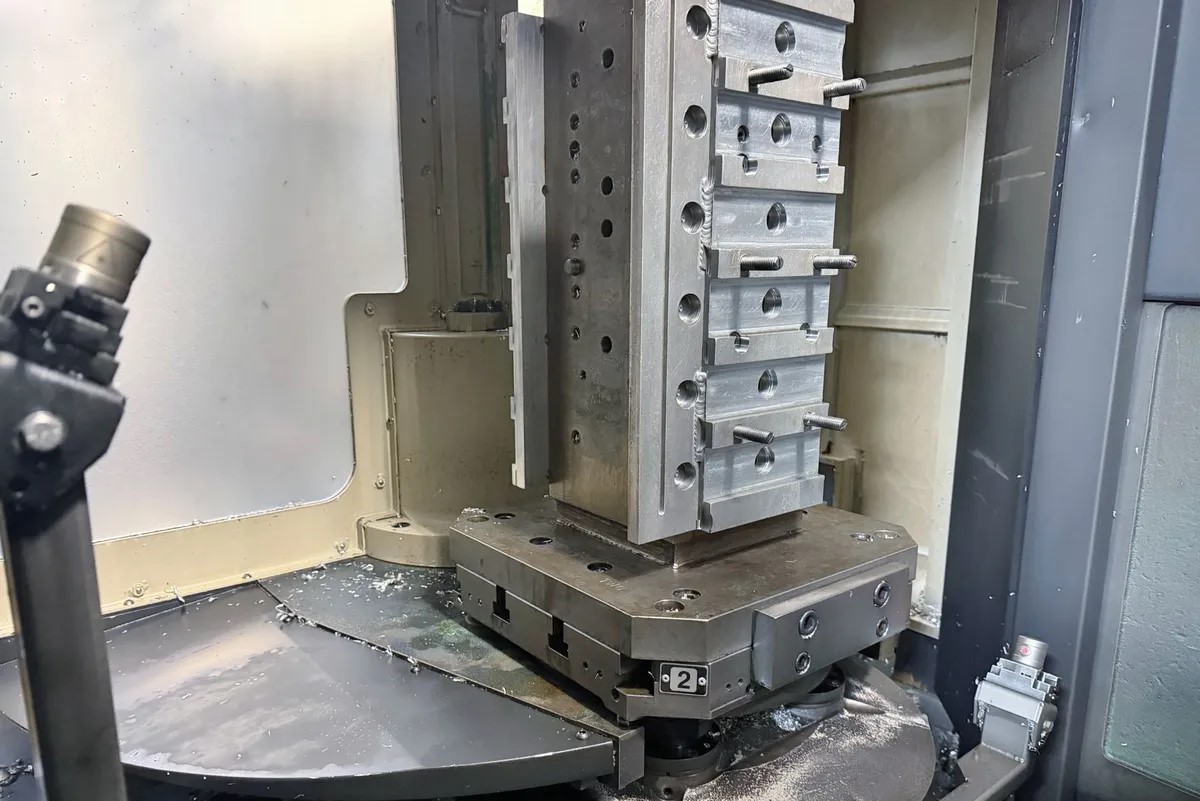

(2) TOMBSTONES

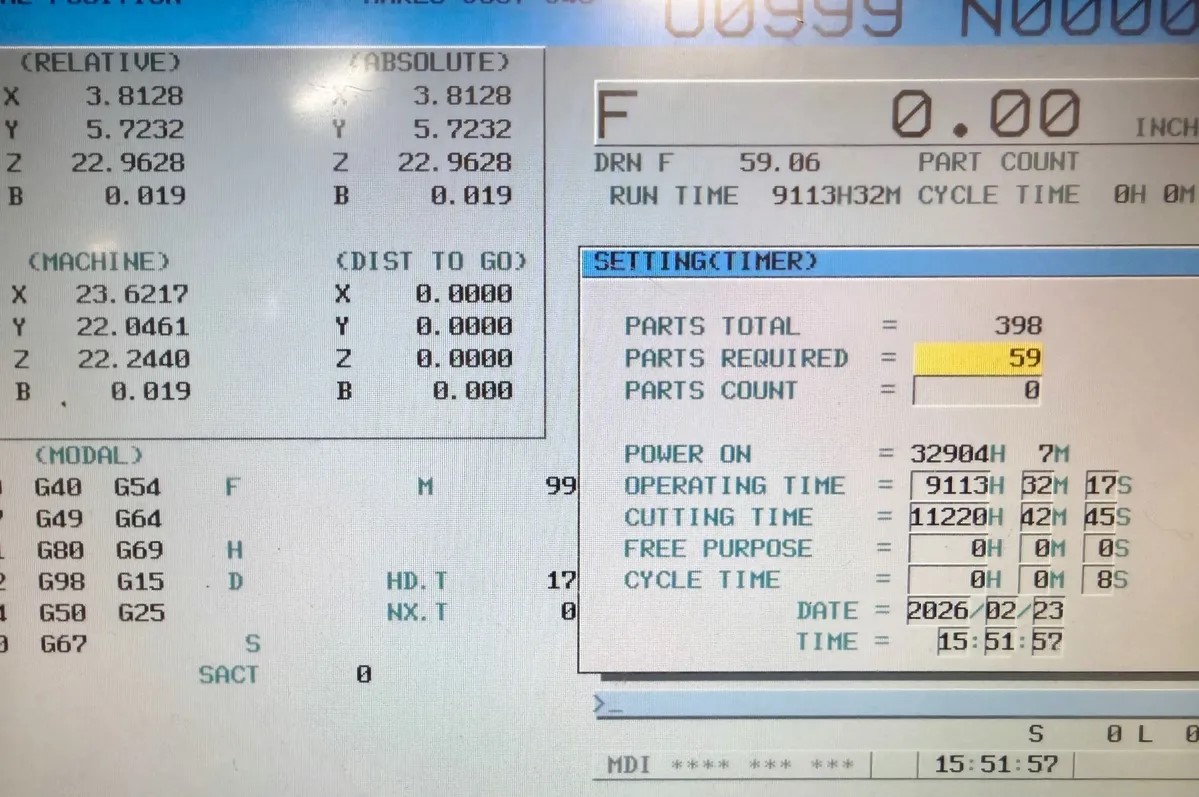

** AS OF FEBRUARY 2026, CUTTING TIME – 11,220 HOURS
** FULL REPLACEMENT COST, AS EQUIPPED - $225,000
** MACHINE CUT PRIMARILY ALUMINUM, BRASS & COPPER
