Machine Specifications
TABLE LENGTH 31.5"
TABLE WIDTH 15.7"
NUMBER OF PALLETS 2
TABLE CAPACITY 441 lb
X-AXIS TRAVEL 25.6"
Y-AXIS TRAVEL 15.7"
Z-AXIS TRAVEL 17.1"
DISTANCE FROM WORK FACE TO SPINDLE 27"
SPINDLE SPEED 16,000 RPM
SPINDLE TAPER BT 30
TOOL CAPACITY (ATC) 40
RAPID TRAVERSE - X AXIS 1,969 in/min.
RAPID TRAVERSE - Y AXIS 1,969 in/min.
RAPID TRAVERSE - Z-AXIS 1,969 in/min.
ROTARY OR TRUNNION Yes
APPROX MACHINE WEIGHT 8,818 lb
EQUIPPED WITH:

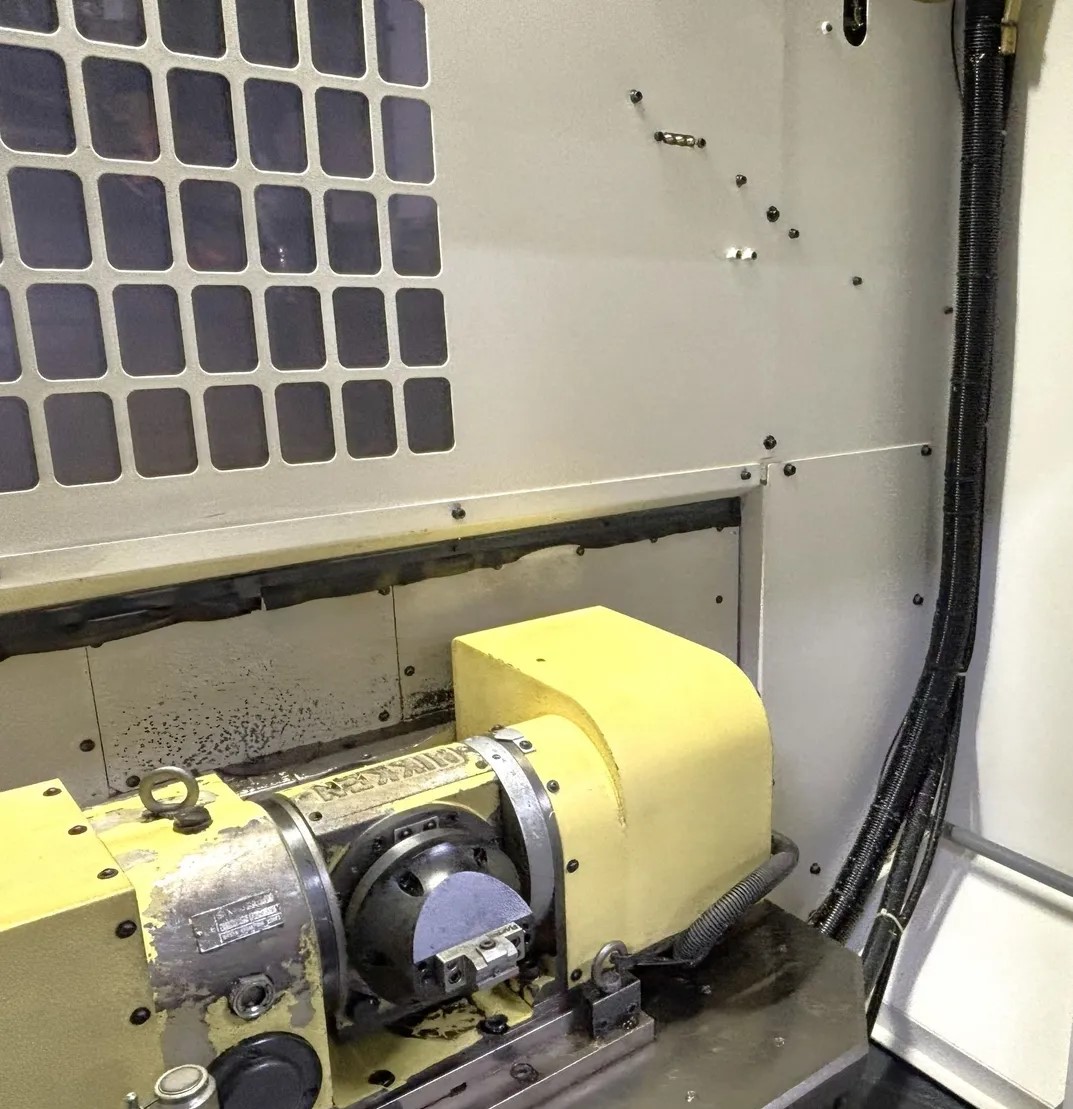

NIKKEN 5AX-130BASA-B42 5TH AXIS ROTARY INDEX TABLE
1000 PSI THROUGH SPINDLE COOLANT
RENISHAW OMP-40 SPINDLE PROBE PACKAGE
DUAL CONTACT BIG-PLUS SPINDLE SYSTEM
METROL TM26D-04-04S TOOL SETTER
MANUAL PULSE GENERATOR
3-STAGE INDICATOR LIGHT
AMANO MZ-15 MIST COLLECTOR

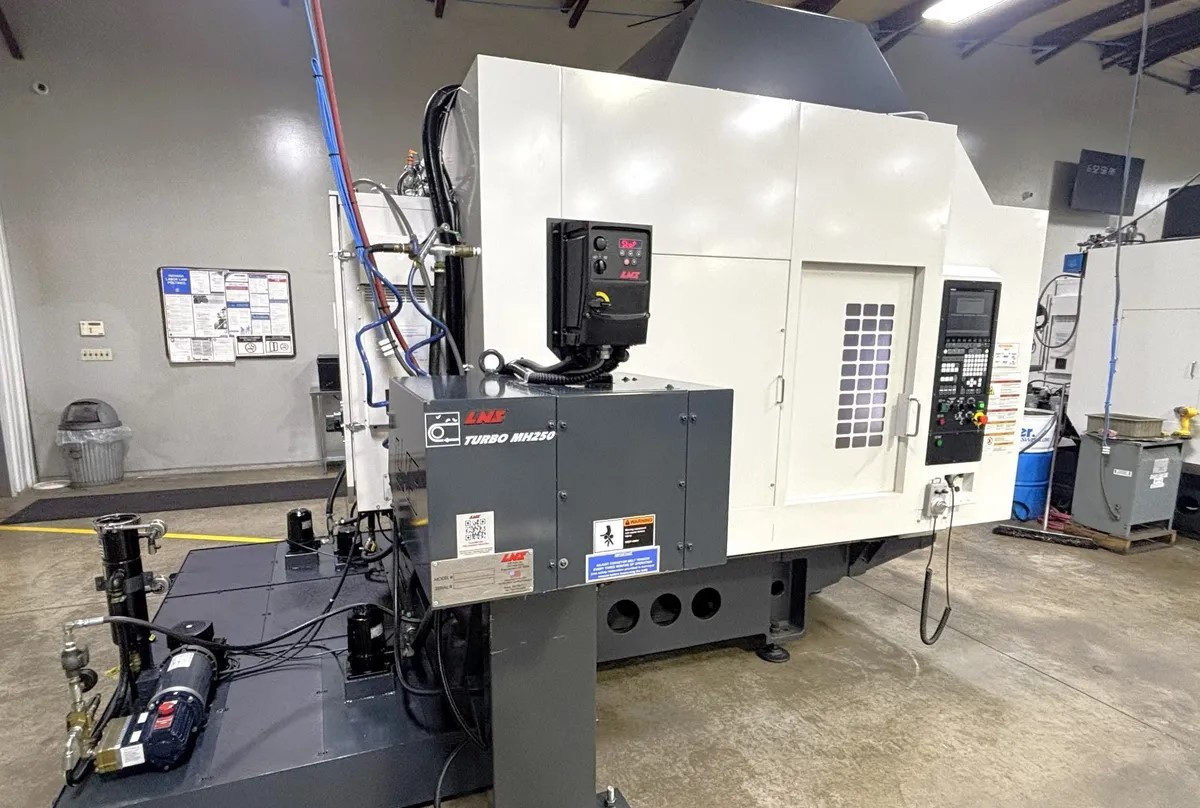

LNS TURBO MH250 MICON FILTER CHIP CONVEYOR
HOURS OF USE AS OF 2/17/2026 (AS SEEN IN PHOTOGRAPH):
* OPERATION TIME: 4,037 HOURS
* POWER ON TIME: 8,454 HOURS
* TOTAL OPERATION TIME: 4,037 HOURS
** REPLACEMENT COST FOR ABOVE EQUIPPED SYSTEM IF PURCHASED NEW: $270,000
