Machine Specifications
TABLE LENGTH 36"
TABLE WIDTH 14"
X-AXIS TRAVEL 30"
Y-AXIS TRAVEL 16"
Z-AXIS TRAVEL 20"
SPINDLE SPEED 15,000 RPM
SPINDLE MOTOR 30 hp
SPINDLE TAPER CAT 40
TOOL CAPACITY (ATC) 30
EQUIPPED WITH:

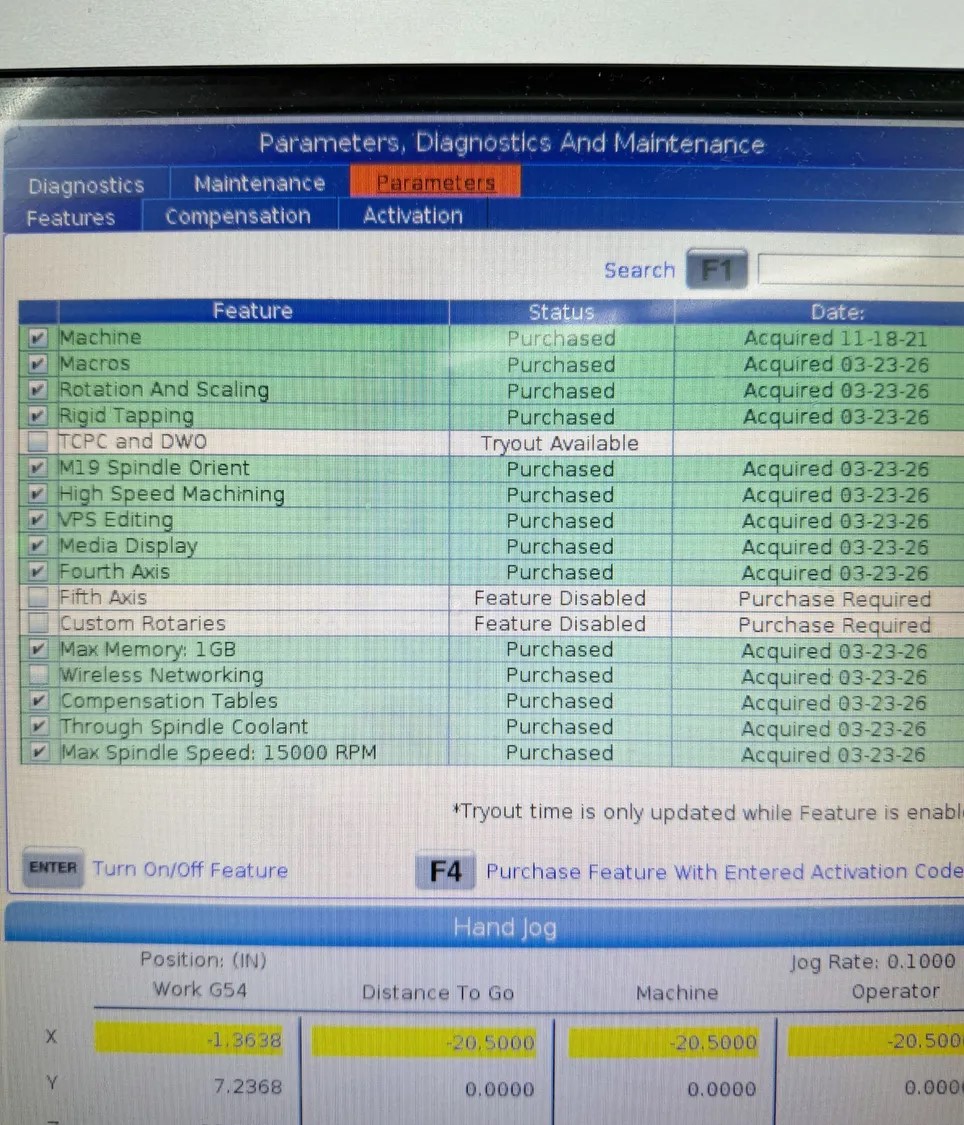

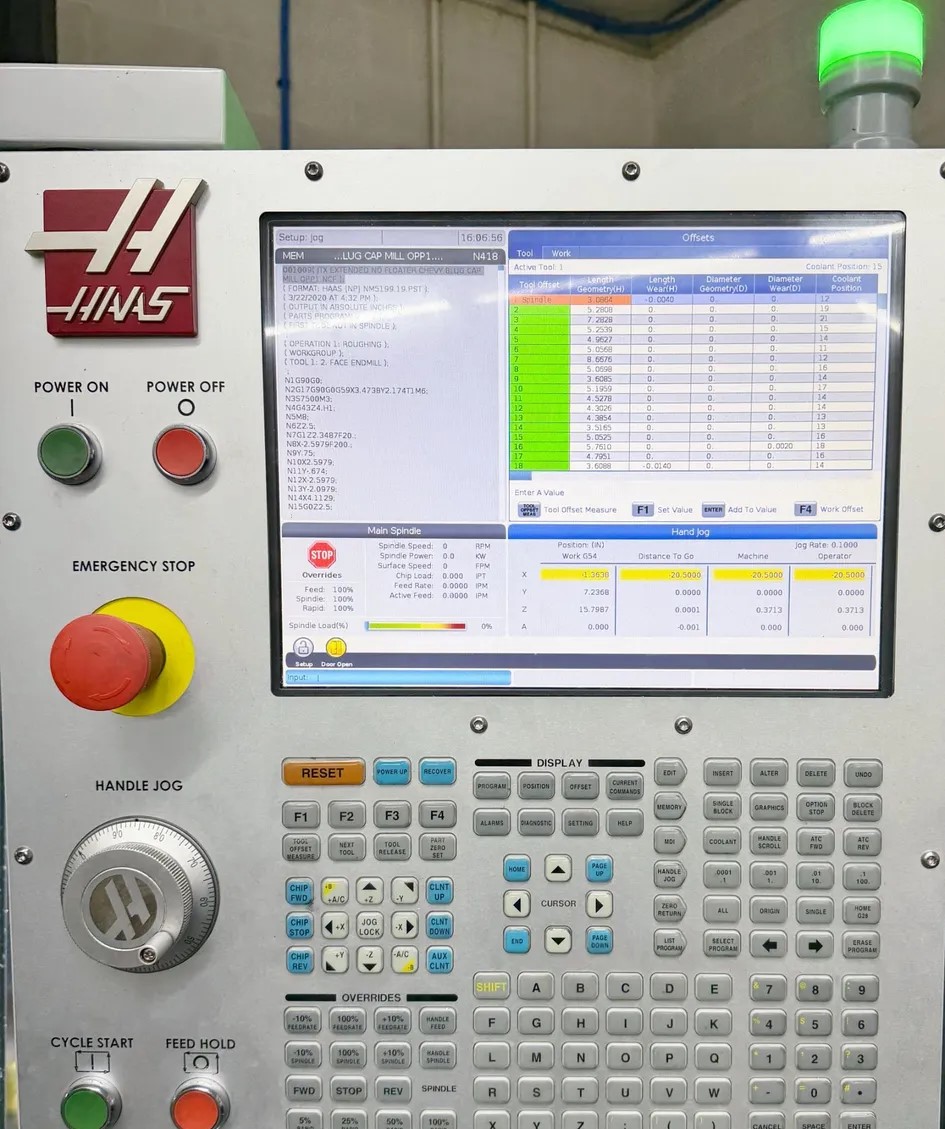

HAAS NEXTGEN CONTROL
15,000 RPM SPINDLE (CAT40)
THROUGH-SPINDLE COOLANT (300 PSI)
RENISHAW WIRELESS INTUITIVE PROBING SYSTEM (WIPS)
4TH AXIS DRIVE & WIRING (ROTARY TABLE NOT INCLUDED)
SIDE-MOUNT TOOL CHANGER (30 ATC)
AUXILIARY COOLANT FILTRATION SYSTEM
PROGRAMMABLE COOLANT
WINDOW AIR BLAST
CHIP AUGER
AUTO DOOR
VISUAL PART PROGRAMMING SYSTEM (VPS EDITING)
COORDINATE ROTATION & SCALING
MEDIA DISPLAY M-CODE (M130)
HIGH-SPEED MACHINING
SPINDLE ORIENTATION
RIGID TAPPING
MACROS
ETHERNET
USB PORT
1GB MEMORY
WIFI CONNECTION
HAASCONNECT: REMOTE MONITORING
** AS OF MARCH 2026, CUTTING TIME – 2,309 HOURS
** MACHINE CUT PRIMARILY ALUMINUM
** FULL REPLACEMENT COST, AS EQUIPPED - $120,000
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE

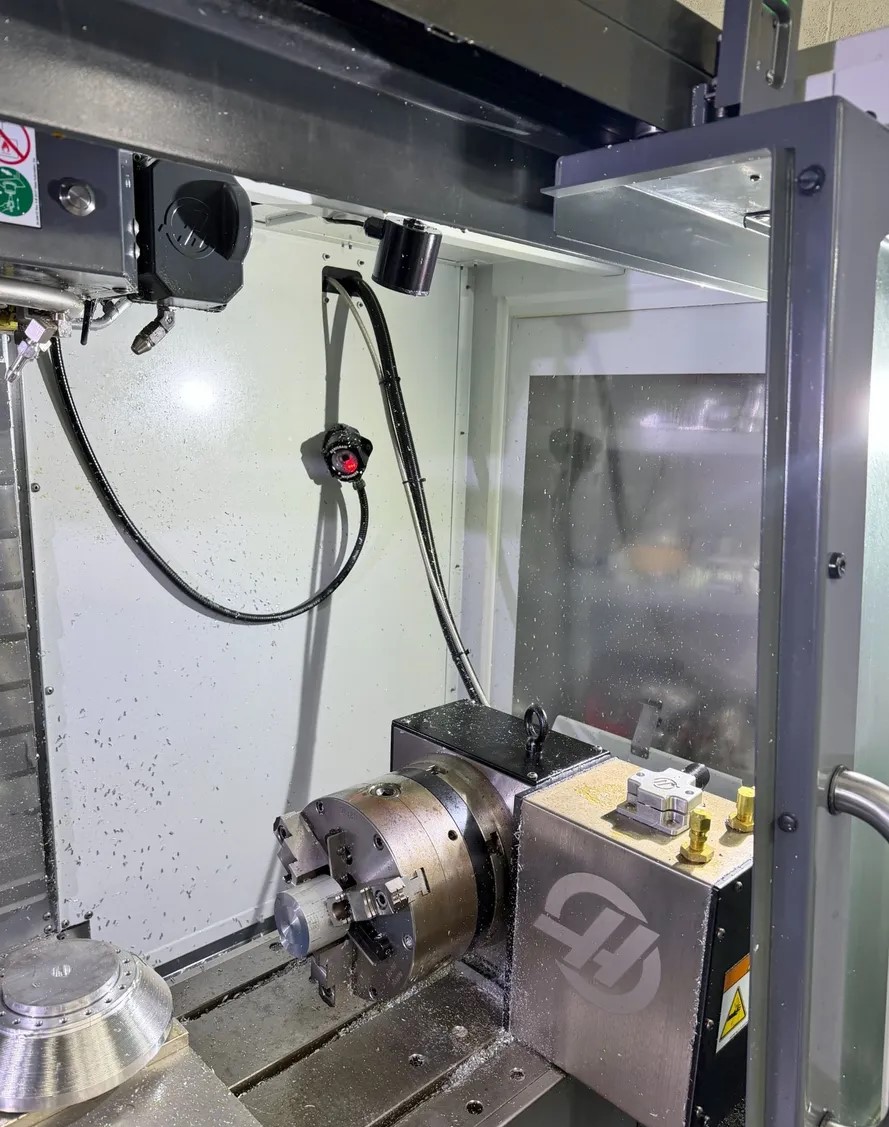

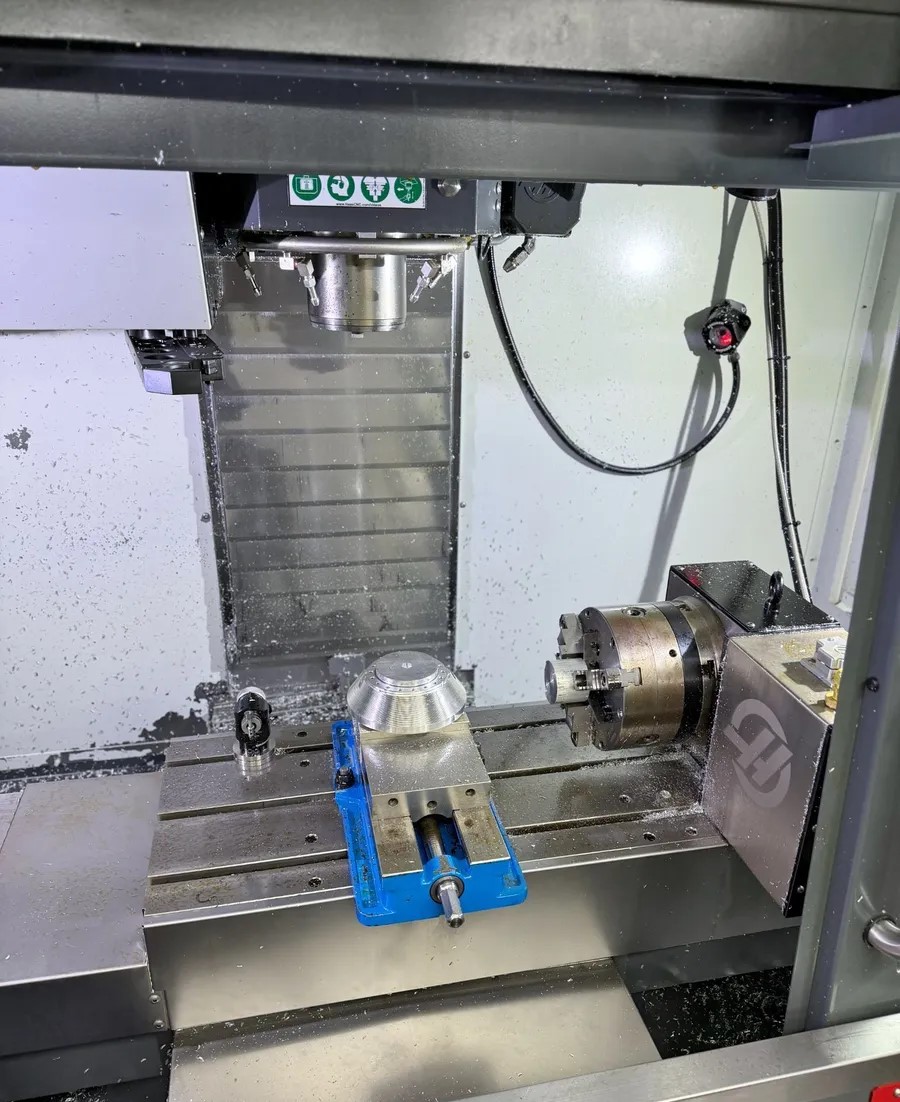

** ROTARY TABLE, VICES & TOOL HOLDERS SHOWN IN PHOTOS ARE NOT INCLUDED WITH MACHINE
