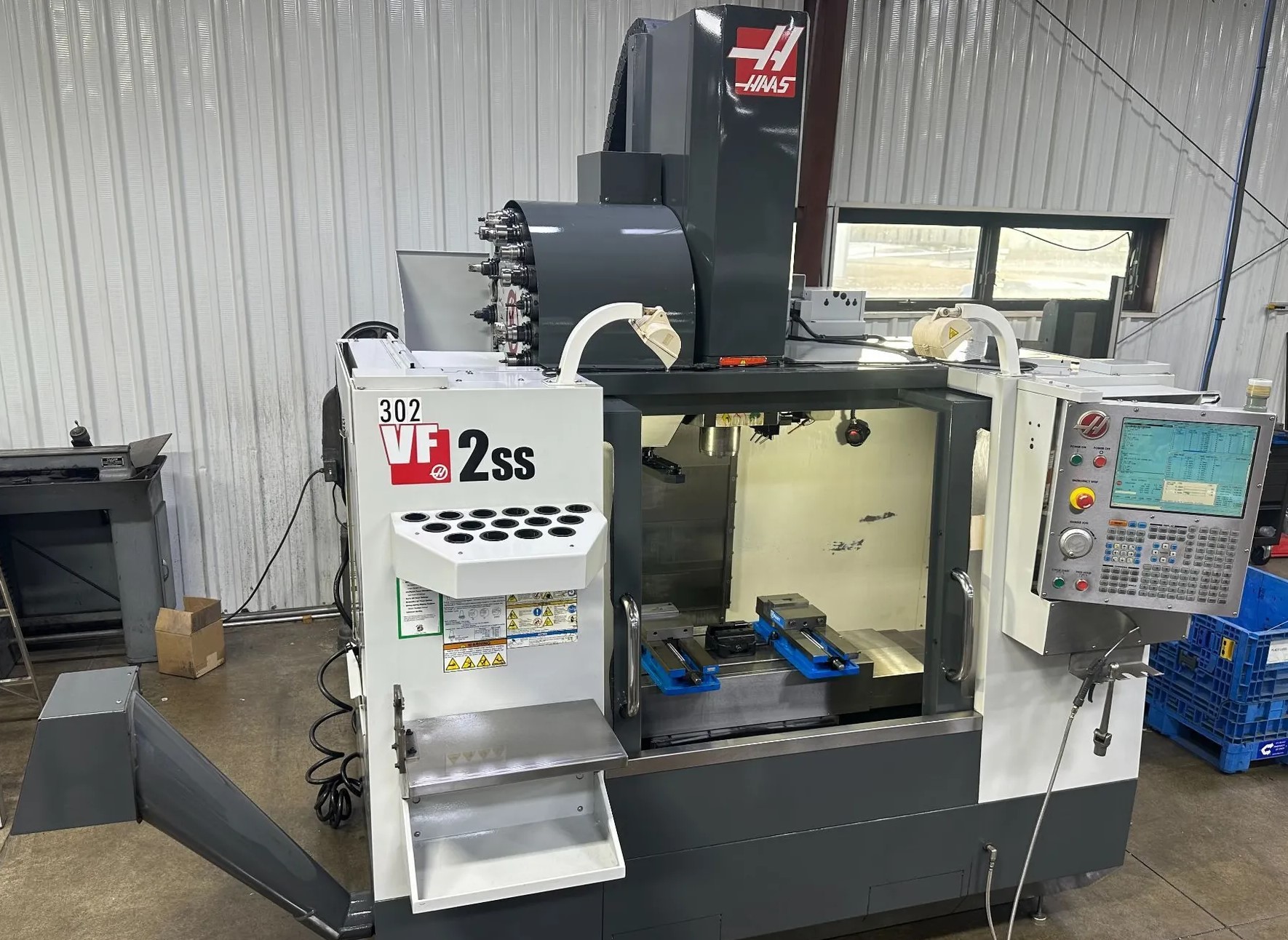

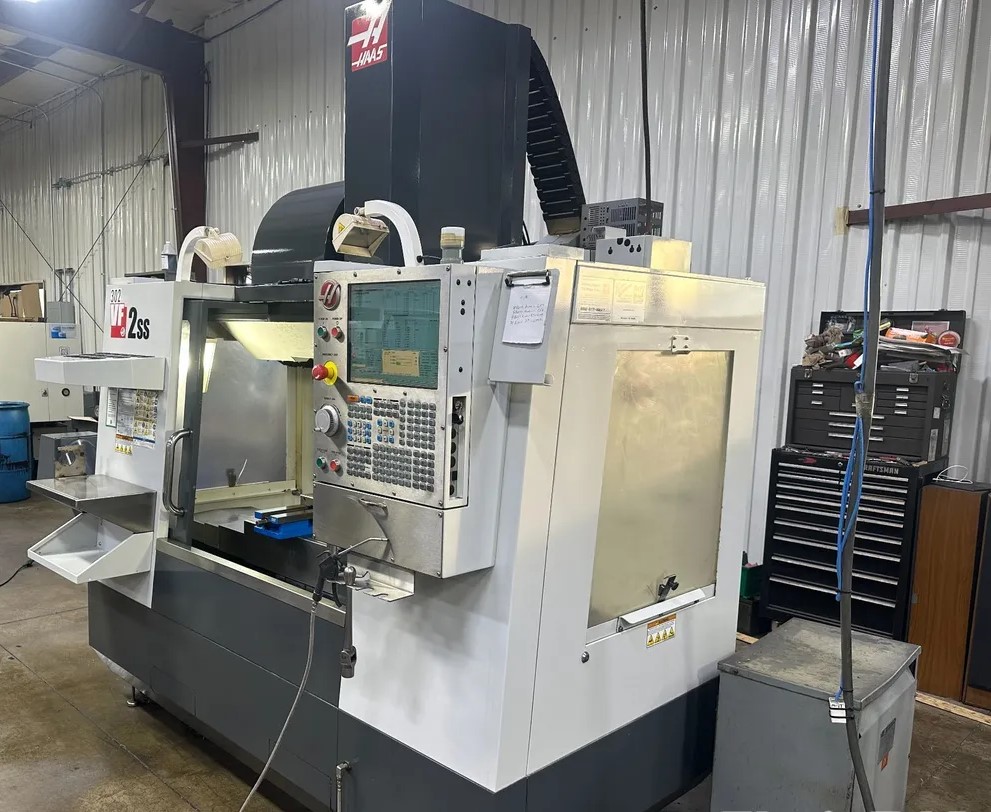

Machine Specifications
TABLE LENGTH 36"
TABLE WIDTH 14"
X-AXIS TRAVEL 30"
Y-AXIS TRAVEL 16"
Z-AXIS TRAVEL 20"
SPINDLE SPEED 12,000 RPM
SPINDLE MOTOR 30 hp
SPINDLE TAPER CAT 40
TOOL CAPACITY (ATC) 24
ROTARY OR TRUNNION Yes
Equipped With:
HAAS CNC CONTROL
4TH AND 5TH AXIS DRIVES

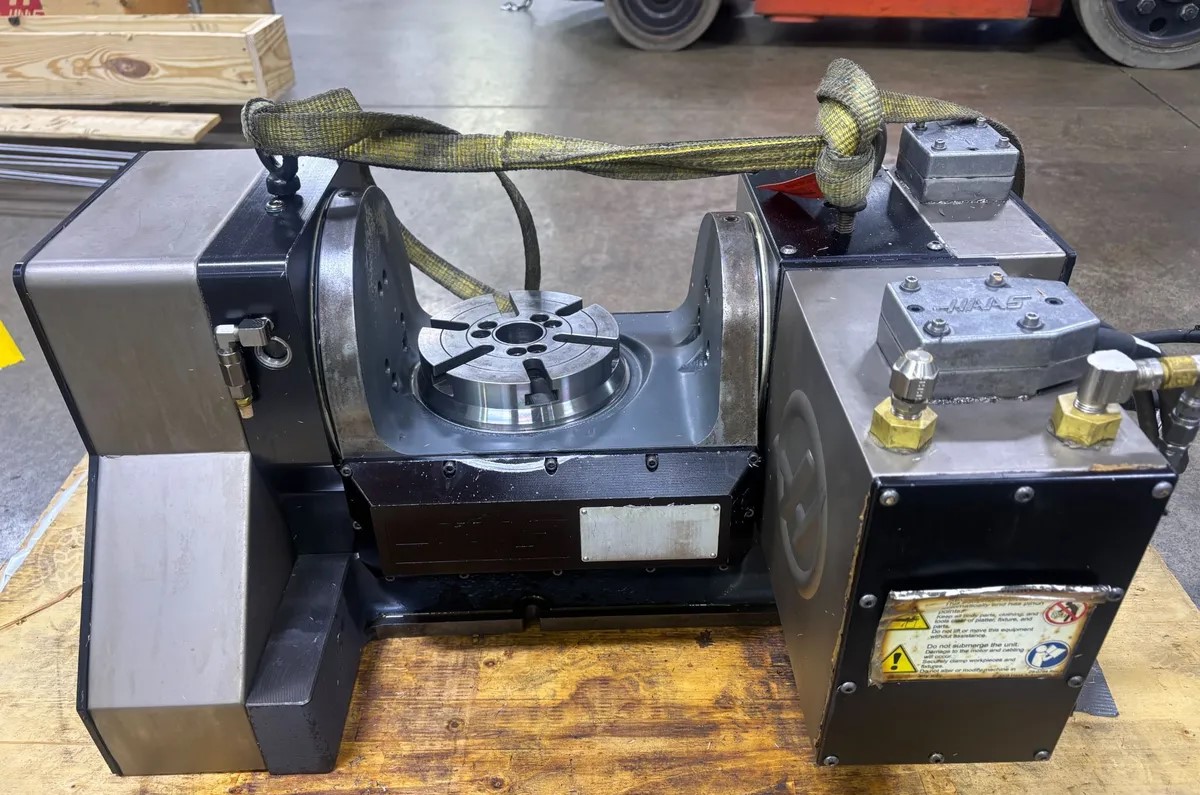

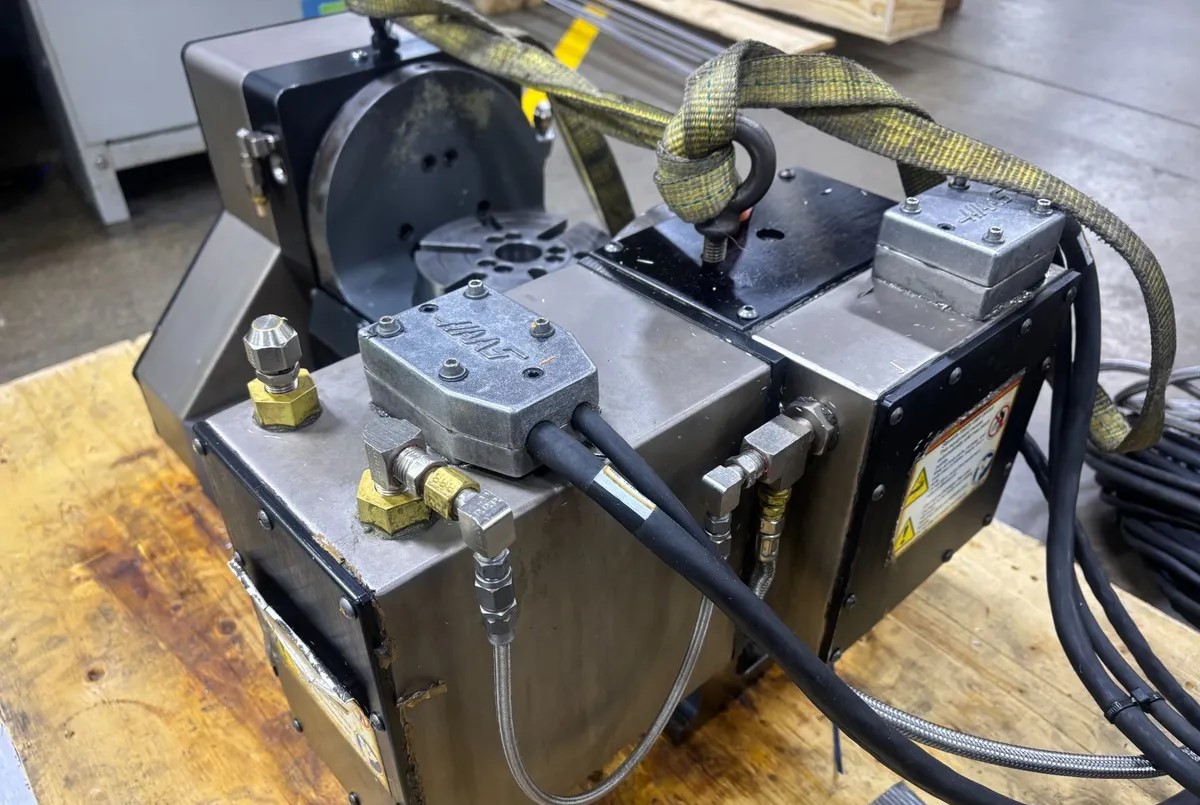

HAAS TR160Y
WIRELESS INTUITIVE PROBING SYSTEM (WIPS)
PROGRAMMABLE COOLANT
CHIP AUGER
HIGH INTENSITY LIGHTING
USB PORT

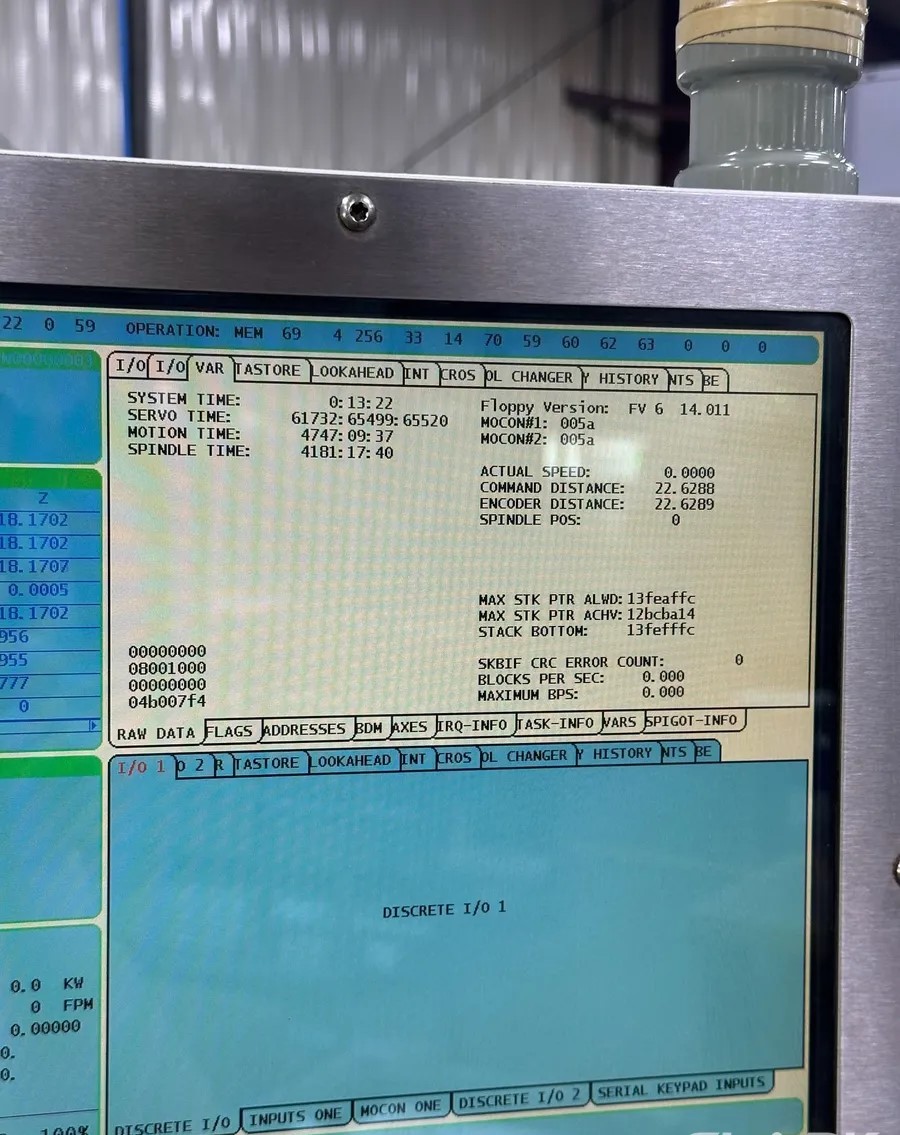

HOURS OF USE AS OF 2/24/2026 (AS IN PICTURE)
* SERVO TIME: 61,732 HOURS
* MOTION TIME: 4,747 HOURS
* SPINDLE TIME: 4,181 HOURS
MACHINE IS COMING OUT OF VERY CLEAN, SINGLE SHIFT SHOP. ONLY CUT ALUMINUM
