Machine Specifications
Description
2-Speed Gearbox, 12" chuck, 4.5" Spindle Bore, Tailstock, Tool Presetter, Chip Conveyor, Box Ways. This 2016 Doosan Puma GT3100 2-axis CNC lathe with Fanuc control is in plant, under power, and available immediately. Also available in same plant: 2017 Doosan Lynx 2100LB.
Specifications
MAX SWING 28.3"
MAX CUTTING DIAMETER 18.9"
MAX CUTTING LENGTH 29.7"
X-AXIS TRAVEL 10.2"
Z-AXIS TRAVEL 32.7"
CHUCK SIZE 12"
BAR CAPACITY 4"
SPINDLE BORE 4.5"
SPINDLE NOSE A2-11
SPINDLE MOTOR 45 hp
SPINDLE SPEED 2,800 RPM

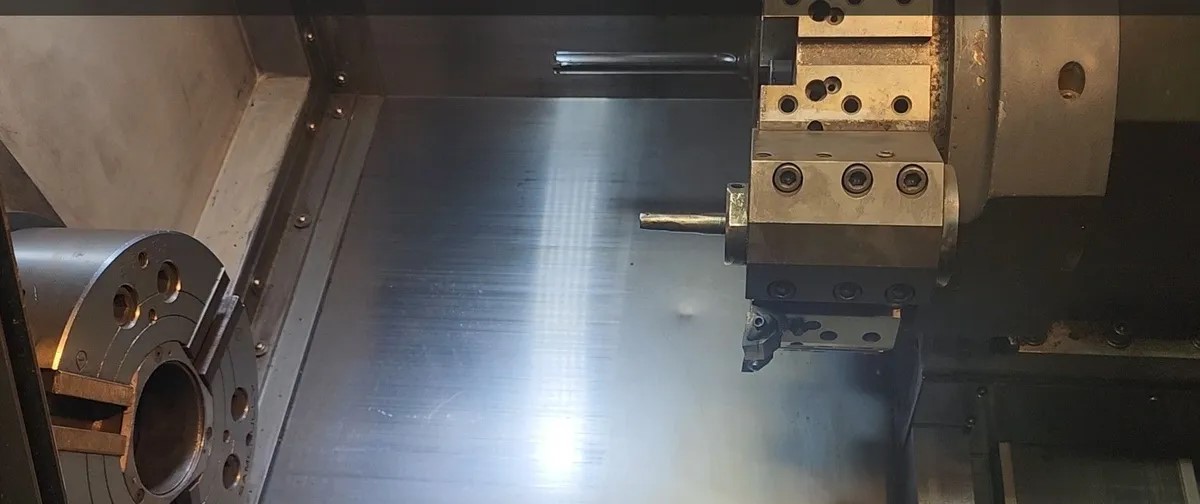

TURRET POSITIONS 12
TURRET TYPE BMT
Equipped With

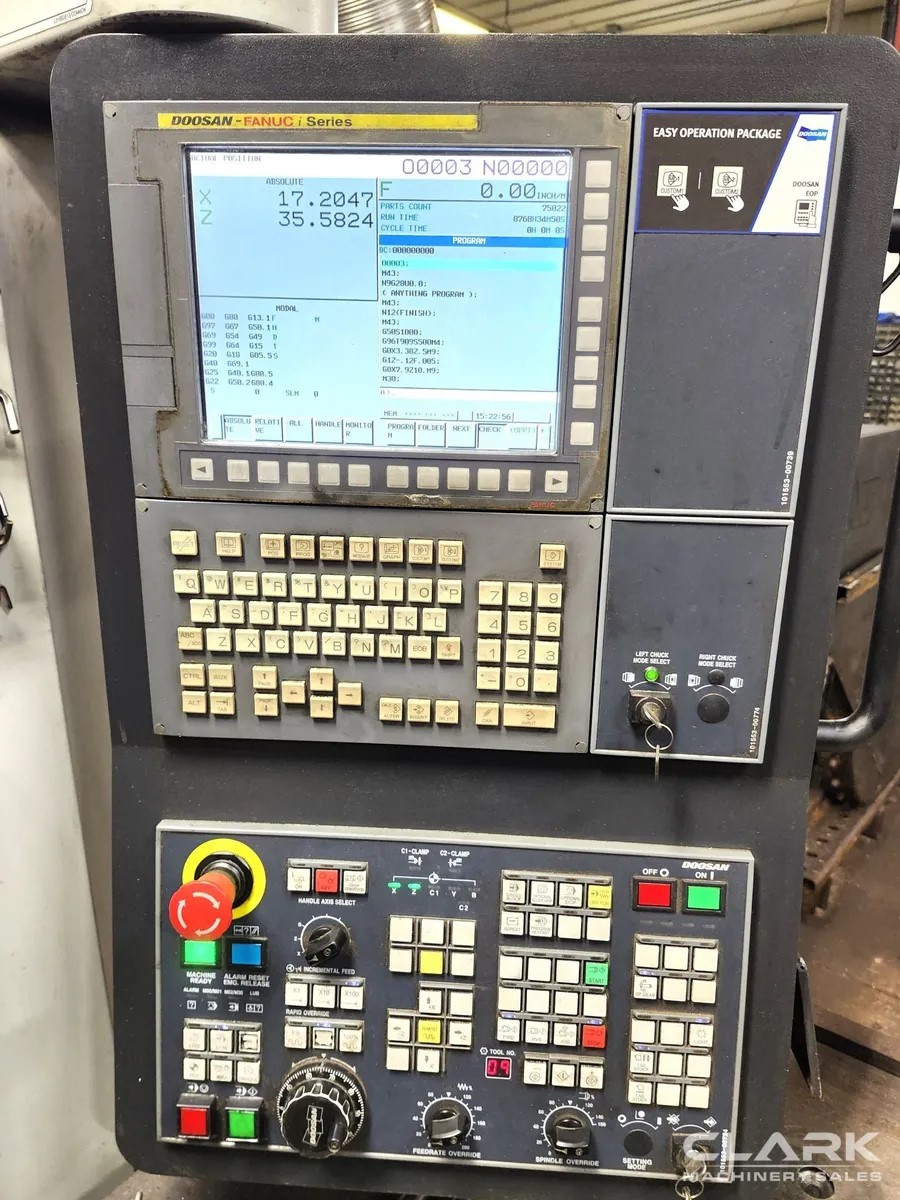

DOOSAN-FANUC i SERIES CONTROL
2-SPEED GEARBOX
4" BAR CAPACITY
12”, 3-JAW SAMCHULLY (MH-212) HYDRAULUC CHUCK
S26 COLLET CHUCK

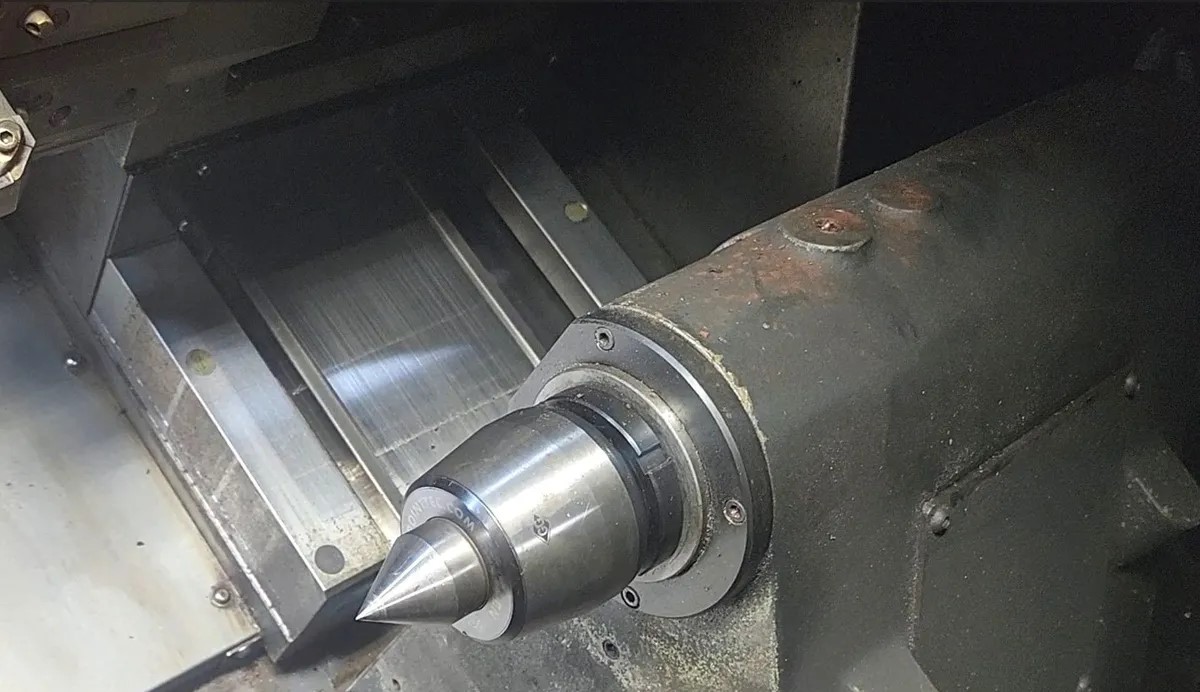

PROGRAMMABLE TAILSTOCK
TOOL PRESETTER
CHIP CONVEYOR
BOX WAYS

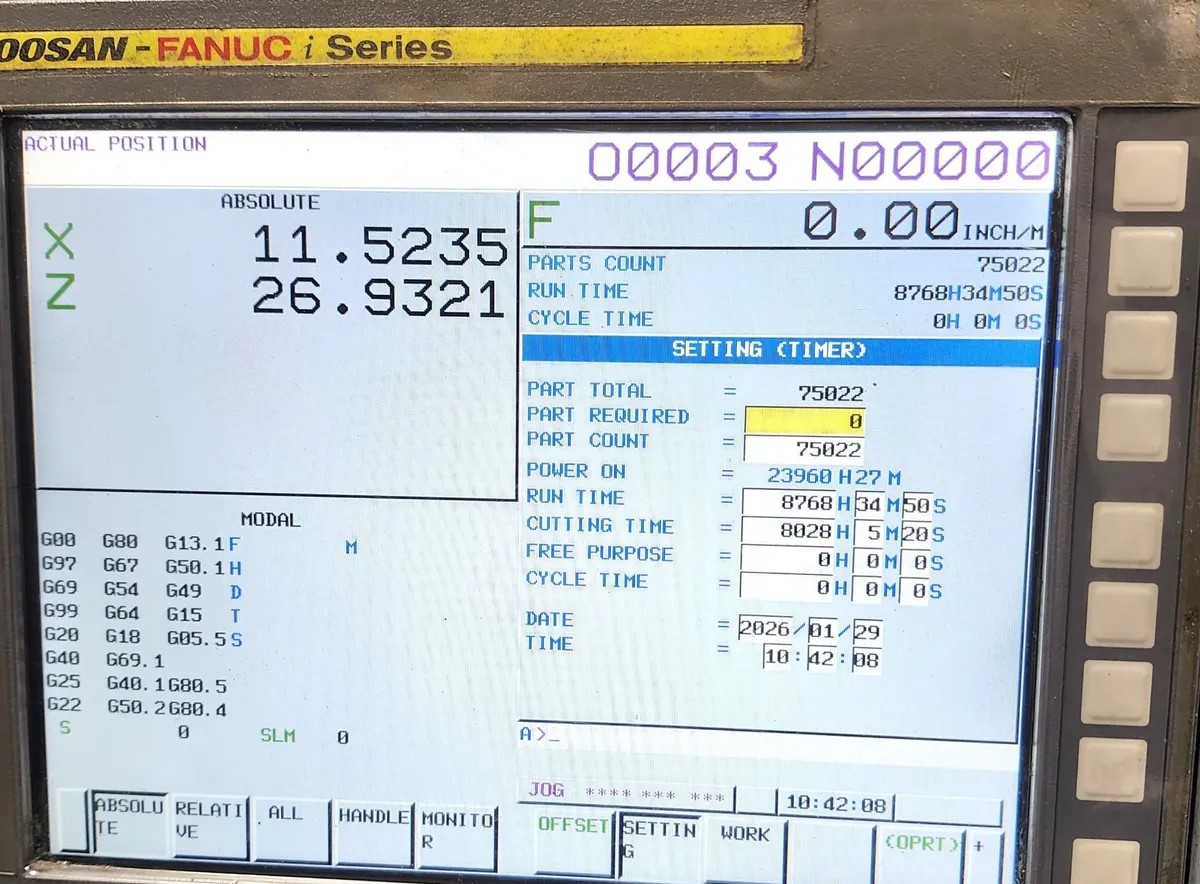

Hours (03/2026) 8028
