Machine Specifications
Round Cutting Capacities
+60°: 10"
+45°: 16"
+0°: 16.5"
Rectangle Cutting Capacities
+60°: 16" x 10"
+45°: 16" x 16"
+0°: 15" x 25.6"
Blade Speed: 82 - 410 FPM
Blade Dimensions: 17'5" x 1.5" x 0.05"
Blade Motor: 7.5 HP
Workbed Height: 29.5"
Feed Stroke Length: 31.5"
Coolant Tank: 29.9 Gallons
Equipped With

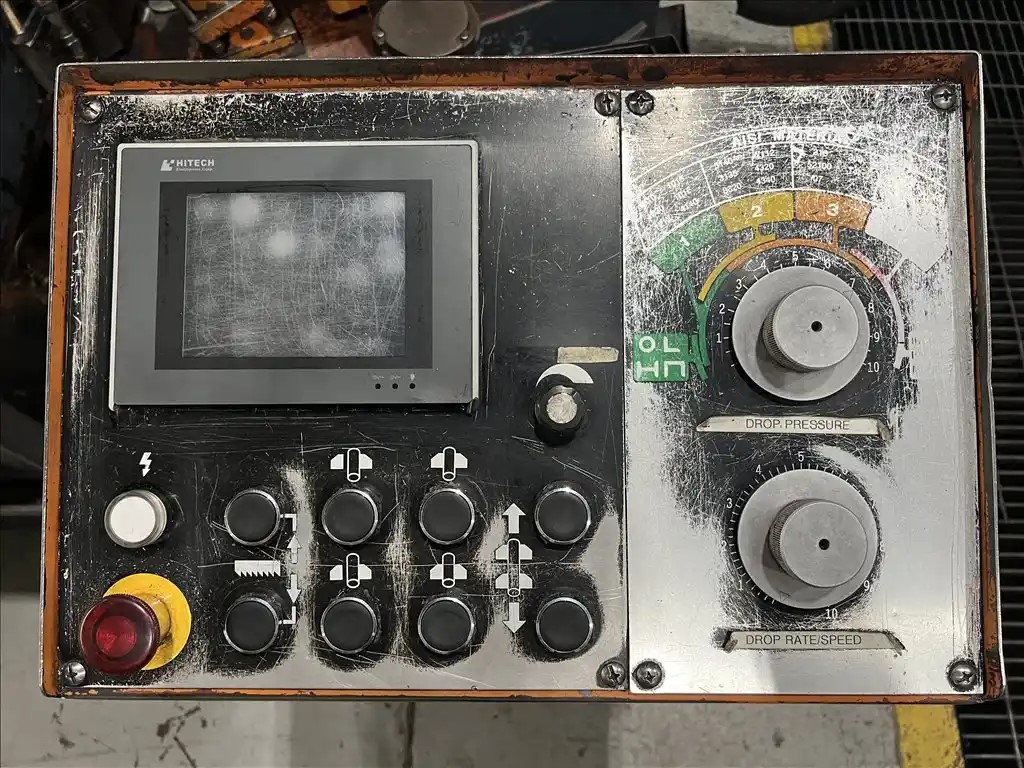

Smart NC-100 PLC Control
Coolant

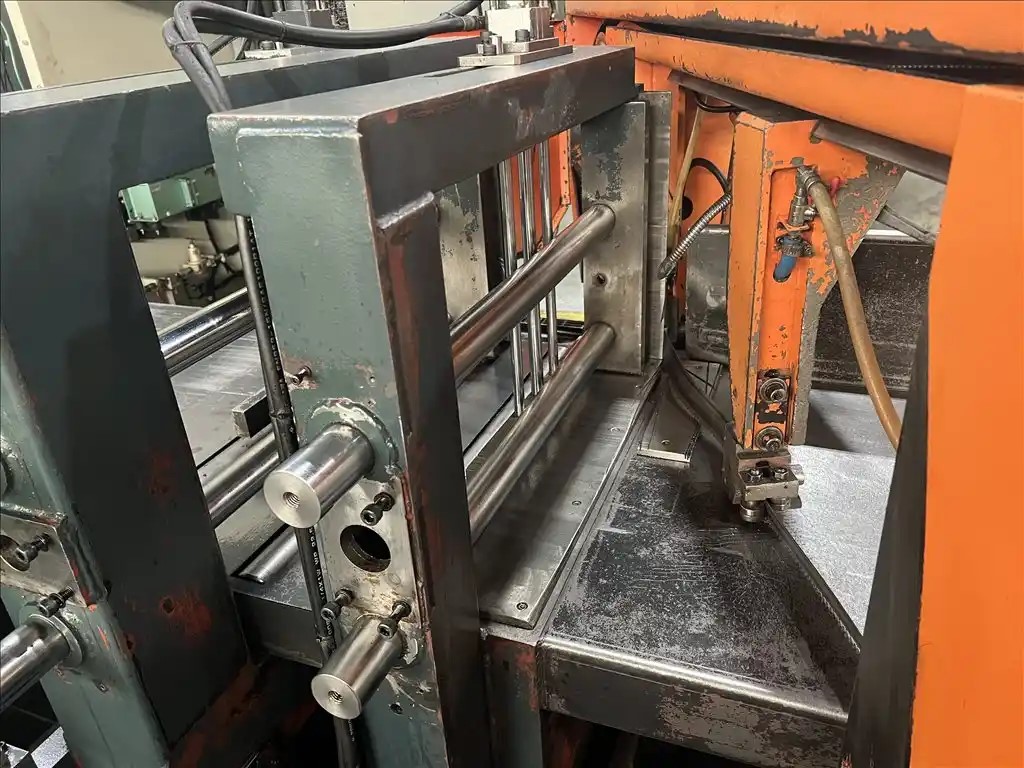

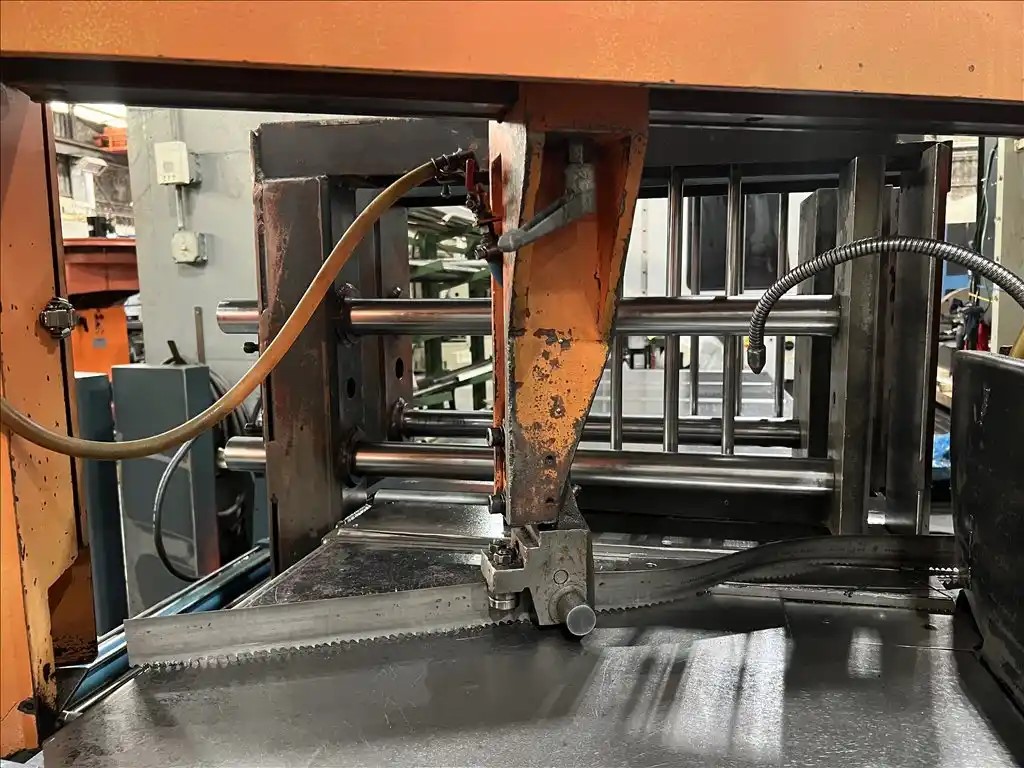

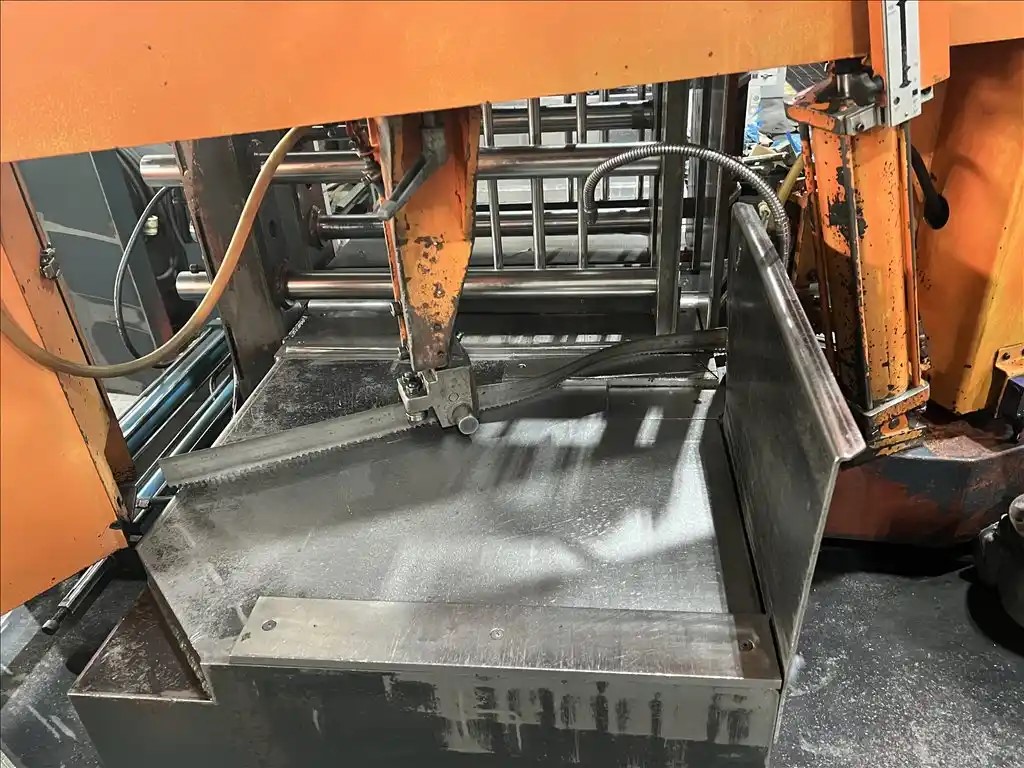

Cast Iron Hydraulic Vises
Inverter-Driven Blade System

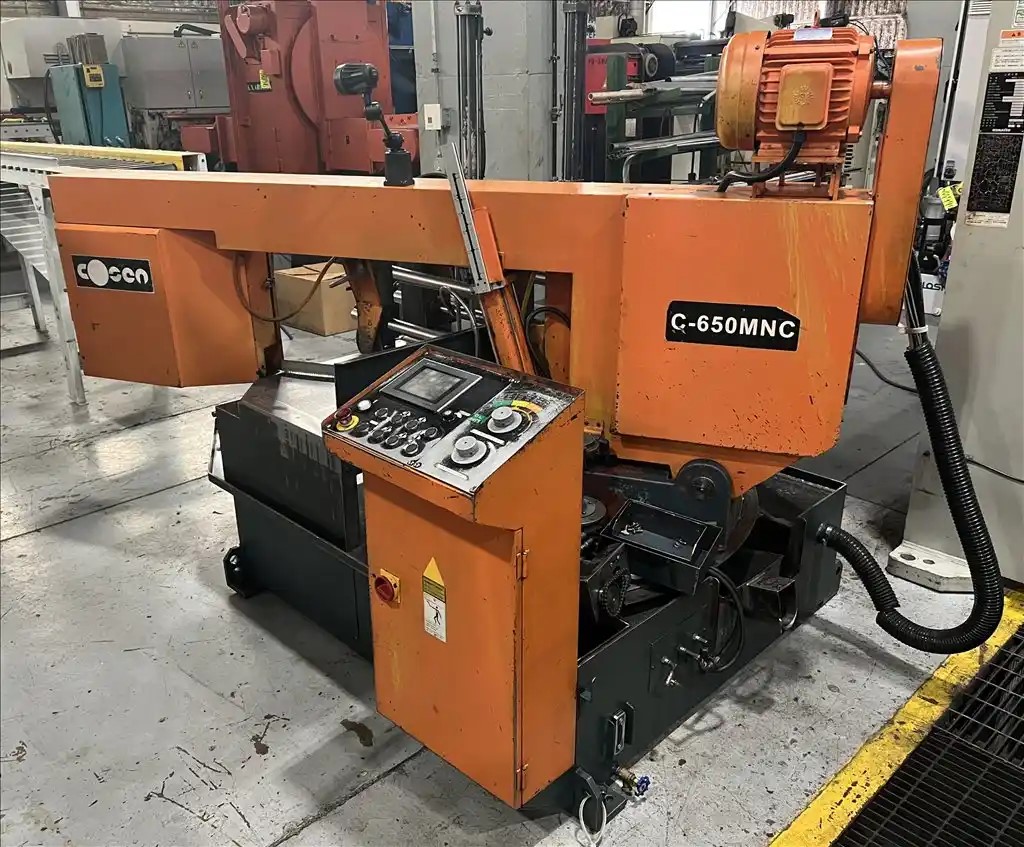

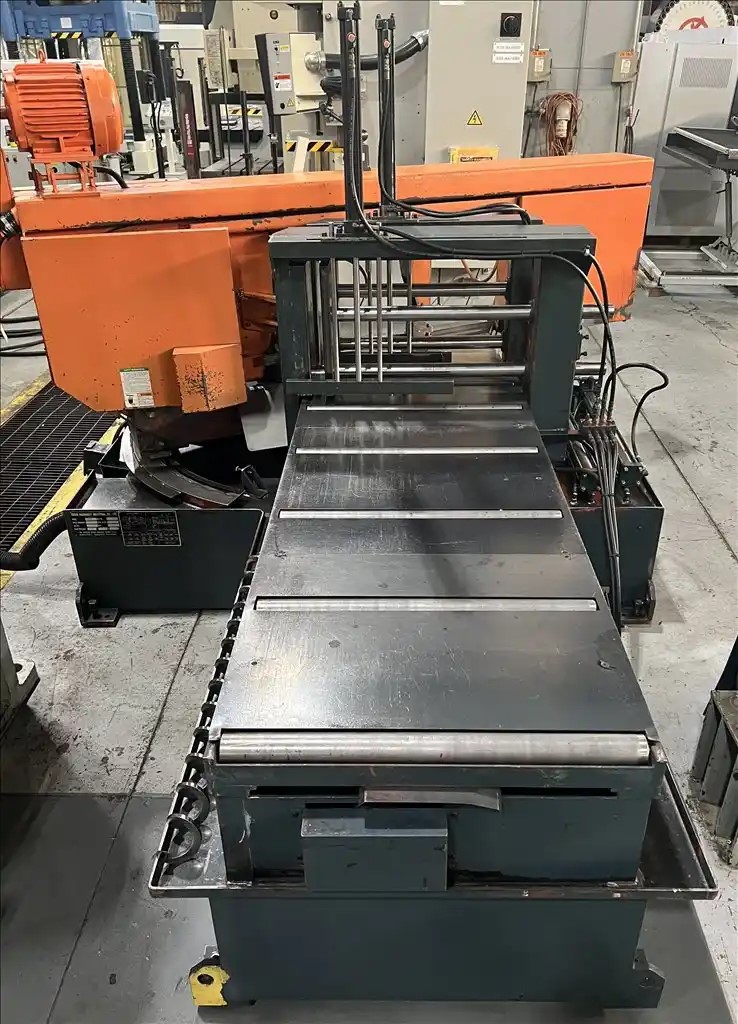

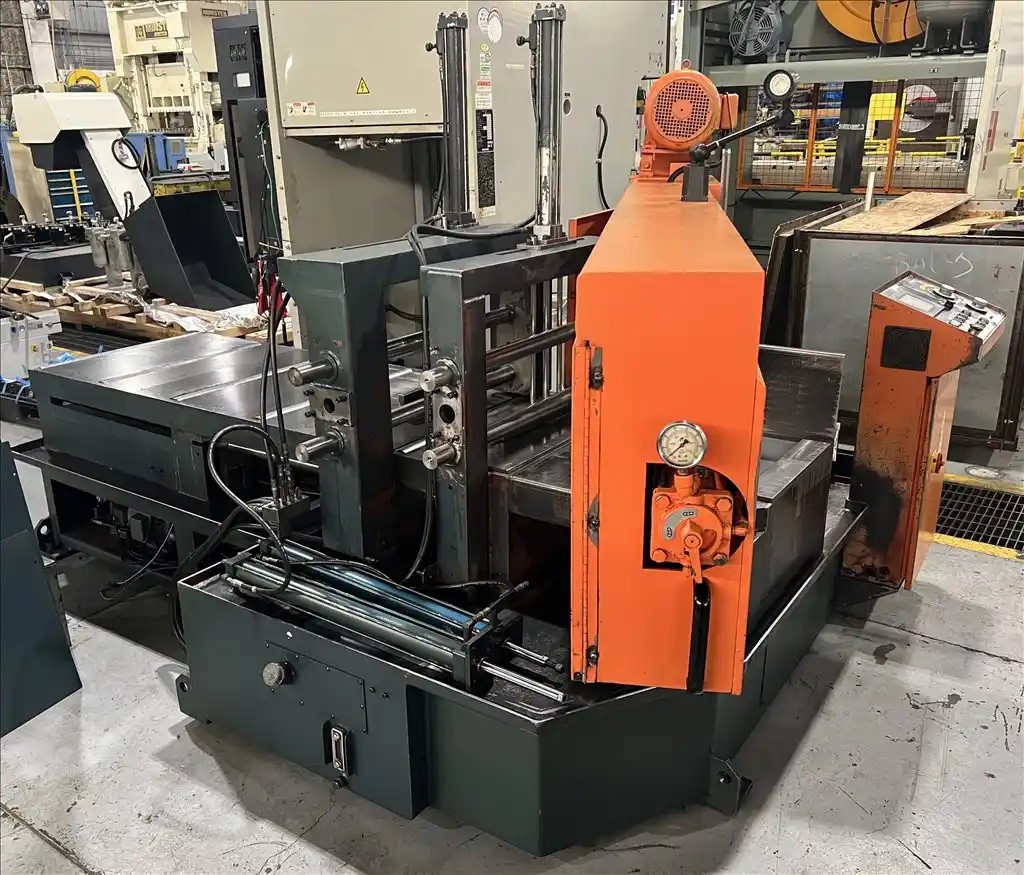

This Cosen C-650MNC Automatic Miter Horizontal Band Saw is engineered for precision, reliability and consistent performance in mass fabrication environments. It’s ideal for fabricators, metal service centers and manufacturing shops seeking repeatable straight and angle cuts on bars, tubing and structural stock without the size extremes of heavy-duty production machines.
With its Smart NC-100 (SNC-100) control technology, this saw delivers many of the benefits of fully NC-controlled systems—program up to 100 jobs with automatic kerf compensation and indexing up to 999″ in length—at a fraction of the cost. The saw’s rigid cast-iron construction, hydraulic vising, inverter-driven blade system and heavy-duty gearbox ensure smooth cut quality, long service life and minimal downtime.
