Machine Specifications

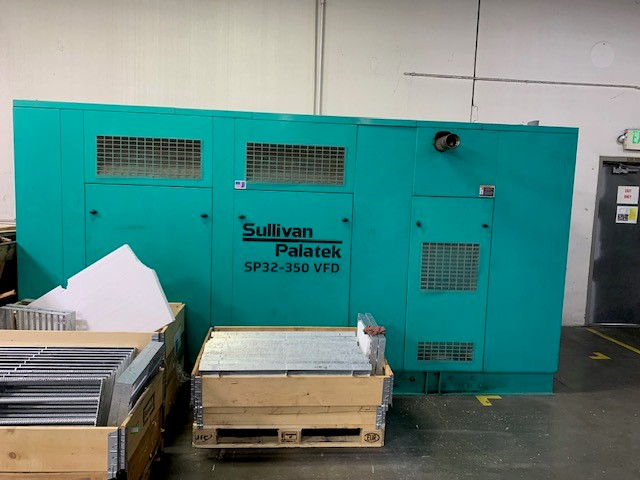

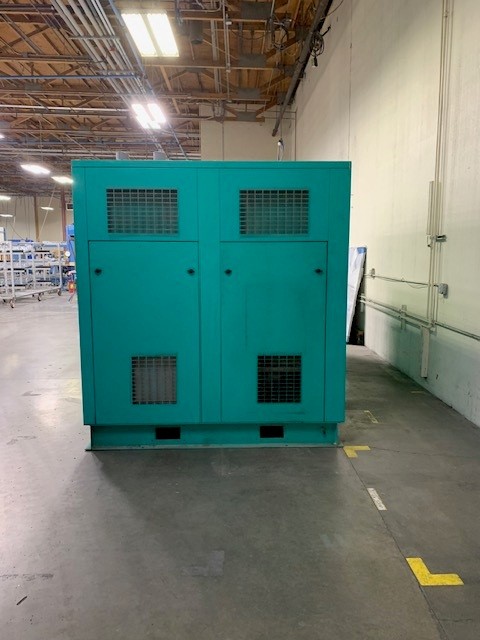

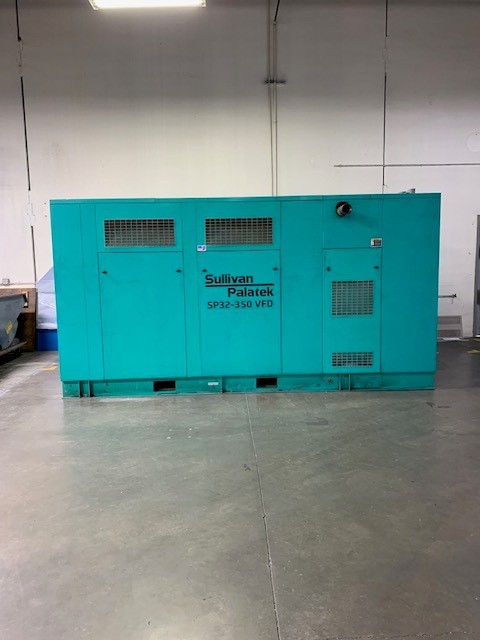

SULLIVAN-PALATEK SP32-350 VFD 350 HP ROTARY SCREW AIR COMPRESSOR
Manufacturer: Sullivan-Palatek
Model: SP32-350 VFD
Type: Rotary Screw Air Compressor
Motor: 350 HP
Drive: Variable Frequency Drive (VFD)
Maximum Pressure: 125 PSIG
Capacity: Approx. 1,488 CFM @ 125 PSI
Run Time: Approx. 25,583 Hours
Main Motor: NEW / 0 Hours
Condition: Currently Not in Service / Untested Following Motor Replacement
Specifications & Features
350 HP Main Motor
Variable Frequency Drive (VFD)
Approx. 1,488 CFM @ 125 PSI
125 PSIG Maximum Operating Pressure
Approx. 25,583 Compressor Run Hours
New Replacement Main Motor – 0 Run Hours
Motor Replaced Under Warranty
15 HP Fan Motor
45-Gallon Sump Capacity
3" NPT Air Discharge
Microprocessor Control
Enclosed Configuration
Approximate Dimensions: 135" L × 58" W × 85.5" H*
Approximate Enclosed Weight: 12,000 Lbs.*
Made in USA of U.S. and Foreign Content
*Based on Sullivan-Palatek published specifications for the SP32-350 platform.
Condition
The compressor was removed from service and subsequently received a new replacement motor under warranty. The new motor has zero operating hours.
The compressor has not been operated or tested since installation of the replacement motor and is therefore being offered AS-IS, untested for $30,000.
Seller has indicated that the compressor can be tested prior to sale, at which point the asking price would be $50,000.
Description
Heavy-duty Sullivan-Palatek SP32-350 VFD rotary screw air compressor designed for high-volume industrial compressed-air applications. The 350 HP VFD system provides variable-speed operation to better match compressed-air output with plant demand while reducing unloaded operation and starting current.
As-Is As Taken From Storage
